Can axis title position be changed?

šŸ“Š Plotly Python
1

I want to change the axis title position like the following image, I want to know if it is possible.
Is there any options available?
ā€» chart sample link: Axes in Python

newplot
newplot903Ɨ525 18 KB

2

Hi @kits I think this is not directly possible, but you could hide the axis title and use annotations.

3

Using annotations, it seems like axis title.
I guess I should do it like this.
Thank you for your comments @AIMPED

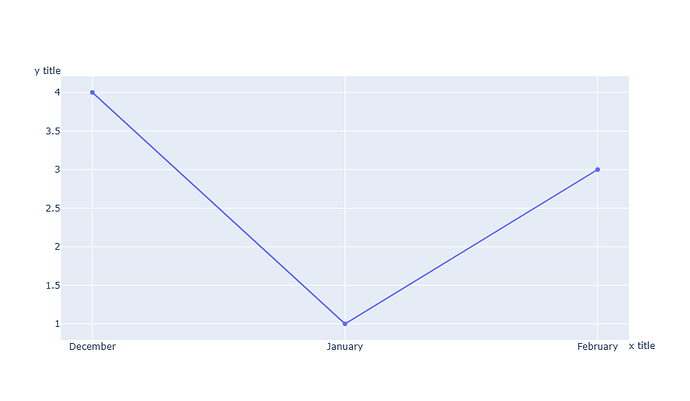

newplot
newplot903Ɨ525 10.7 KB

import plotly.graph_objects as go

fig = go.Figure(go.Scatter(
    mode = "lines+markers",
    y = [4, 1, 3],
    x = ["December", "January", "February"]))

fig.update_layout(width=903, height=525)

fig.add_annotation(
    xref="x domain",
    yref="y domain",
    x=1.05,
    y=-0.05,
    text="x title",
    showarrow=False
)

fig.add_annotation(
    xref="x domain",
    yref="y domain",
    x=-0.05,
    y=1.05,
    text="y title",
    showarrow=False
)

fig.show()
1 Like
4

Great, thanks for the MRE!
