3D Mesh objects in Dash

Dash Python
1

@adamschroeder Thanks again for the Figure Friday welcome.. following our interaction I got to work …

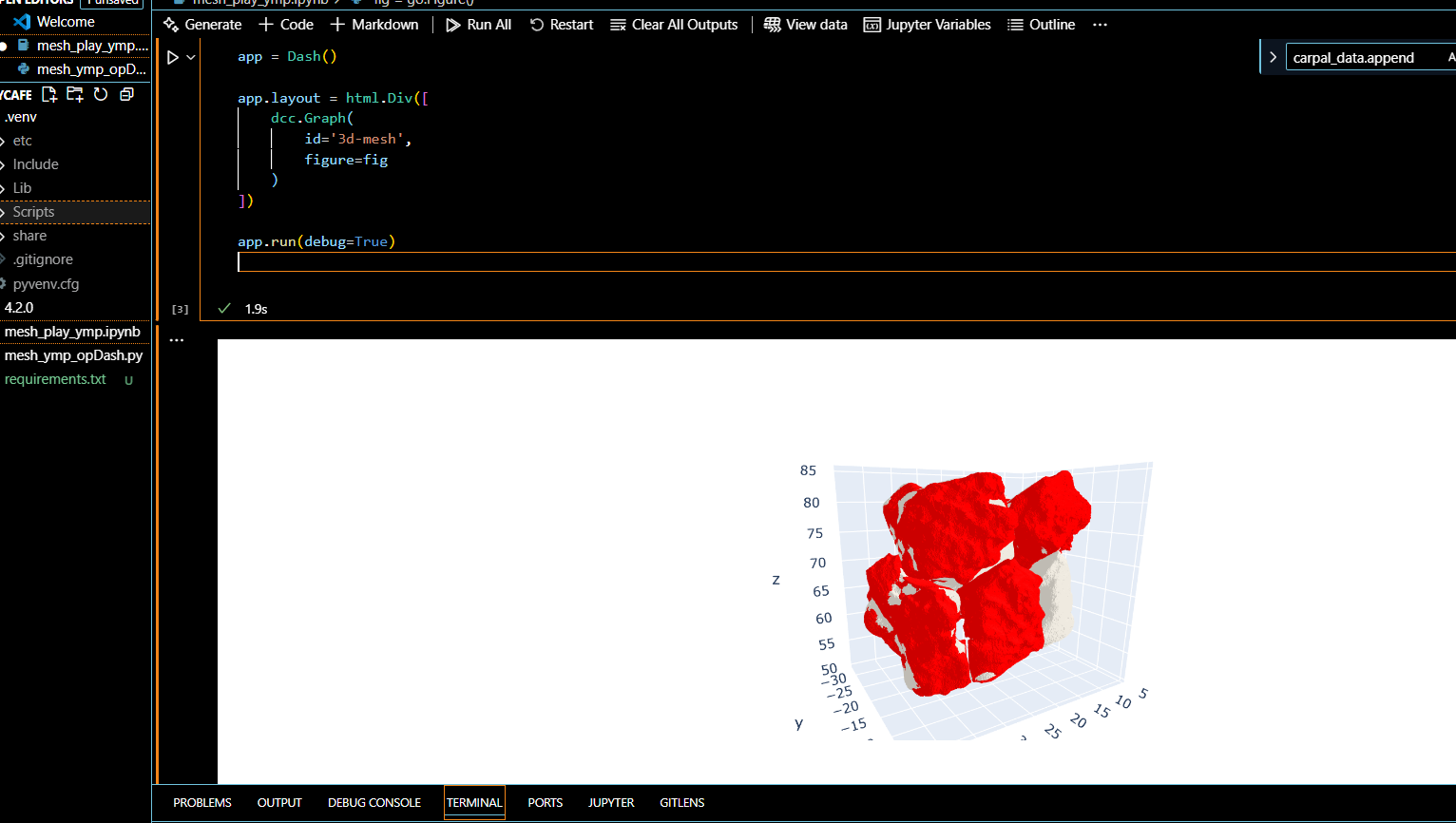

I was able to get a preliminary dash app up and going.. still working on sharing.. I’ll keep on it!

image1532×866 101 KB

1 Like
2

wow, that’s really cool, @Amy_Morton .
I’m eager to see how this develops.

3

Hey @Amy_Morton Have you ever checked out Dash VTK?

2 Likes
4

Amazing! Thank -you @DaveG

So glad to see vtk in association with dash. I’ve come to appreciate vtk from my work writing 3d slicer extensions. I’ll try it out!

5

I built this 3d model component that might be worth also looking into, works well with vr or ar systems:

1 Like
6

Hi @Amy_Morton 3D representation in dash is nice but not always trivial, specially for larger datasets. I struggled in the beginning with adjusting the view parameters sometimes. I created a demo to play around with a while ago:

At some point I had to add coordinate systems to add some guidance/clarity to the 3D plots I created, maybe helpful for somebody.

2 Likes
7

Just wondering about these complex models, don’t they take a long time to load? My own experience is found here: A 3D sketch in DASH - Dash Python - Plotly Community Forum and Axes ratio in 3D plot - Dash Python - Plotly Community Forum and when loading this from the web application (over the internet), it takes a couple of seconds to render (even if it’s just a simple box with 6 sides + a couple of discs and a tube).
