Zoom and panning in logarithmic plot offsets fixed line

[dmulvang]

I experience strange behavior when I zoom and pan in a simple logarithmic scatter plot: a fixed line drawn from (0,0) to (100,100) “jumps” to a wrong position when I first zoom and then pan.

Test code:

import math
import pandas as pd
import plotly.express as px

df = pd.DataFrame([
        [30, 30],
        [70.0, 70.0]
    ],
    columns=['length', 'width'])

fig = px.scatter(df,
                 x="length",
                 y="width",
                 log_x=True,
                 log_y=True)

fig.update_xaxes(range=[0, math.log10(100*1.1)])
fig.update_yaxes(range=[0, math.log10(100*1.1)])
fig.add_shape(type="line", x0=0.0, y0=0.0, x1=100, y1=100)
fig.show()

Running this code, I get the following results:

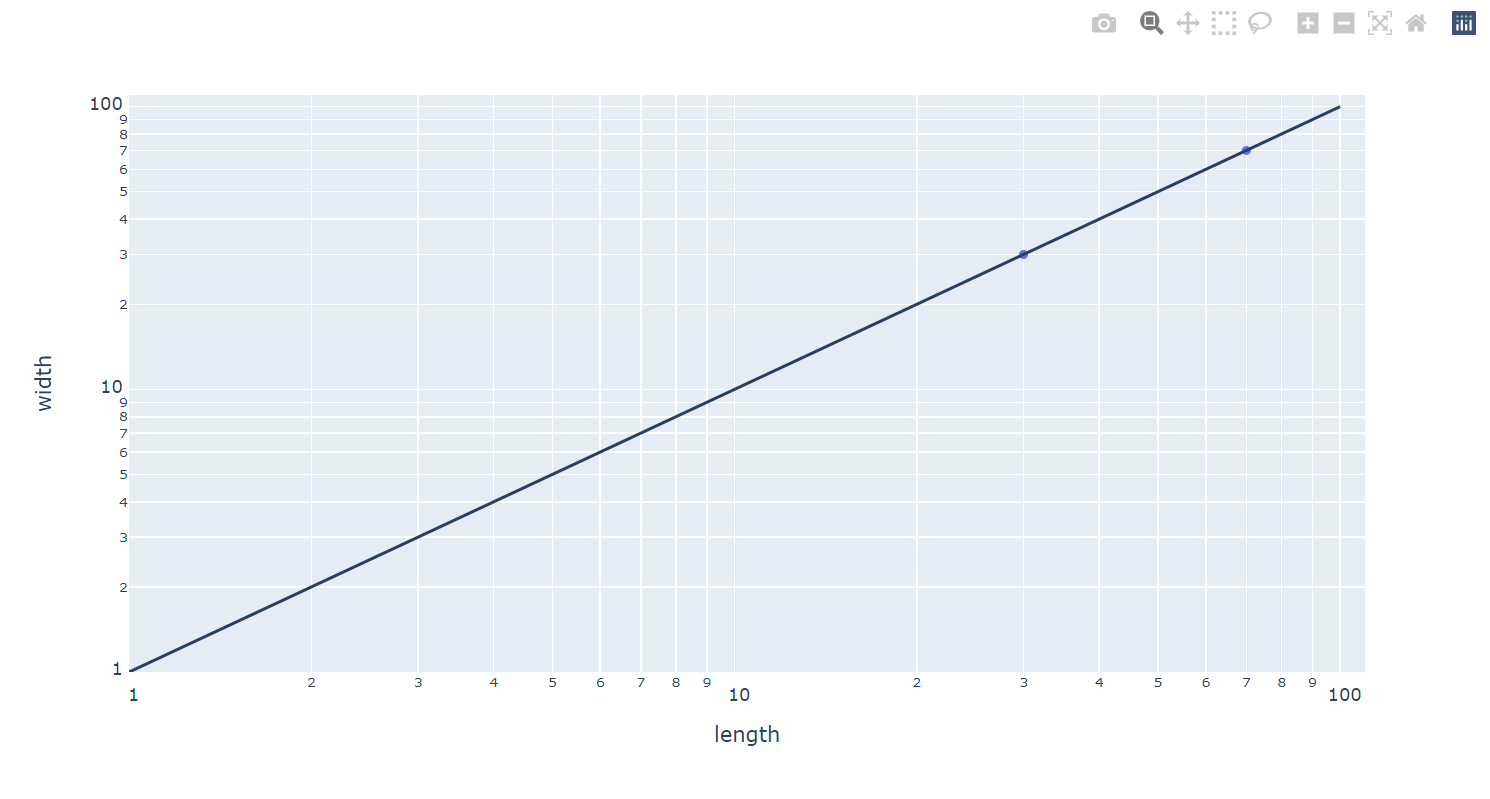

1. Image after startup:




2. Zooming

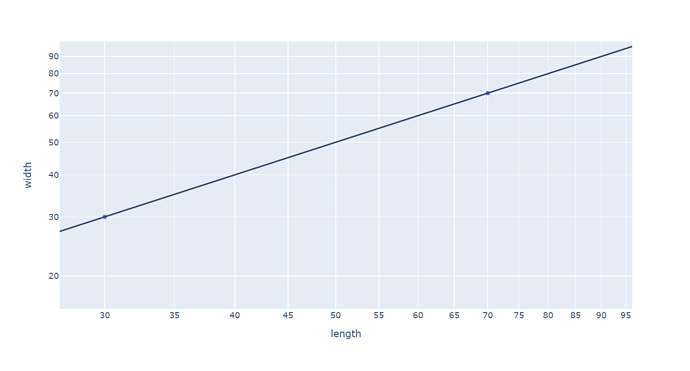

3. Image after zooming

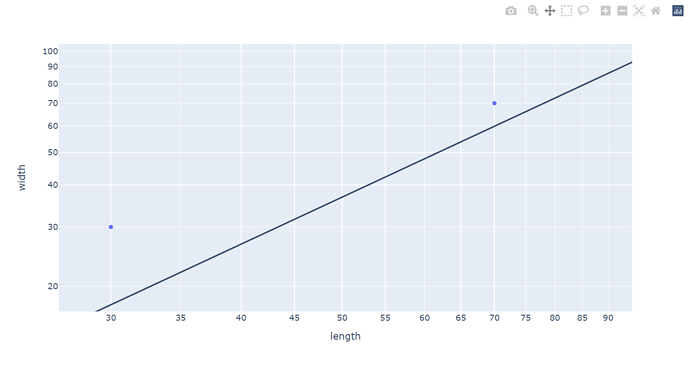

4. Image after panning




This seems lika a bug to me, or am I doing something wrong?

–
Dag Magne
