Scrollable navigation bar in multi-column layout

Dash Python
1

Hi there,
I’m trying to create a multi-column layout with a scrollable navigation bar in one of the columns (see screenshot and code below). The navigation bar recognizes the overflow and shows a scroll bar at the right but it is not scrollable. I would appretiate if someone could point out to me what I’m missing.

Screenshot 2022-03-12 175105
Screenshot 2022-03-12 1751051905×856 33.5 KB

import dash
import dash_bootstrap_components as dbc
import dash
from dash import dcc
import dash_html_components as html

app = dash.Dash(external_stylesheets=[dbc.themes.BOOTSTRAP])

sidebar = dbc.Nav(
    [dbc.NavLink("test", href="/page-1") for i in range(30)],
    pills=True,
    vertical=True,
    style={"overflow": "scroll", "bottom": 0},
)


app.layout = maindiv = dbc.Container(
    [
        dbc.Row(
            [
                dbc.Col(
                    [
                        html.H2("Left Content", className="text-center"),
                        dbc.Row([sidebar], no_gutters=True,),
                    ],
                    style={"background-color": "yellow"},
                    width=3,
                    xs=5,
                    sm=4,
                    md=3,
                    lg=3,
                    xl=3,
                ),
                dbc.Col(
                    [html.H2("Middle Content", className="text-center"),],
                    style={"background-color": "orange"},
                    width=5,
                    xs=1,
                    sm=3,
                    md=5,
                    lg=5,
                    xl=5,
                ),
                dbc.Col(
                    [html.H1("Right Content", className="text-center"),],
                    style={"background-color": "yellow"},
                    width=4,
                    xs=6,
                    sm=5,
                    md=4,
                    lg=4,
                    xl=4,
                ),
            ],
            no_gutters=True,
        ),
    ],
    style={
        "background-color": "green",
        "padding": "0 1rem 0 1rem",
        "margin-left": "0",
        "margin-right": "0",
        "position": "fixed",
    },
    fluid=True,
)


if __name__ == "__main__":
    app.run_server(port=8888, use_reloader=True)
2

Hey @lechat

You can make a column scrollable by setting the column height at 100% and set the overflow to scroll. Then make the row the height of the viewport.

dbc.Row(
    [
        dbc.Col(
            [
                html.H2("Left Content", className="text-center"),
                dbc.Row([sidebar]),
            ],
            className="h-100 overflow-scroll",
        ),
        dbc.Col(...),
        dbc.Col(...)
    ],
    className="vh-100",
)
3

@AnnMarieW Thanks for your quick reply. I have added the two className arguments as suggested (and removed the “position”:“fixed” argument in the style of the outermost row otherwise nothing happens). Then a new scrollbar at the right of the page appears and the entire page becomes scrollable. However, I only want a specific element (the dbc.Nav element in this case) in the first column to be scrollable while fixing the rest of the page. I have also tried adding the className = “h-100 overflow-scroll” argument directly in the row that contains the sidebar. So the question really is why does the scroll bar in the sidebar (which is clearly shown) not allow for scrolling?

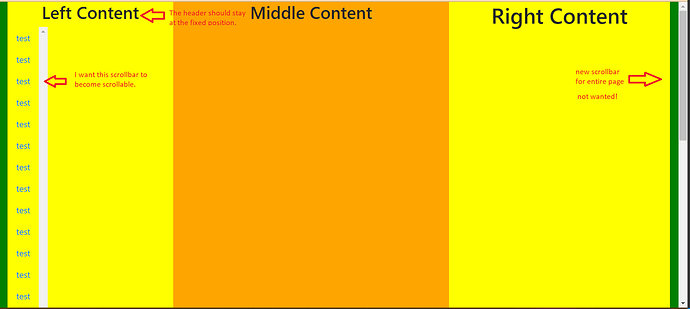

Screenshot 2022-03-13 114357
Screenshot 2022-03-13 1143571924×862 40.7 KB

4

@lechat,

Try this:

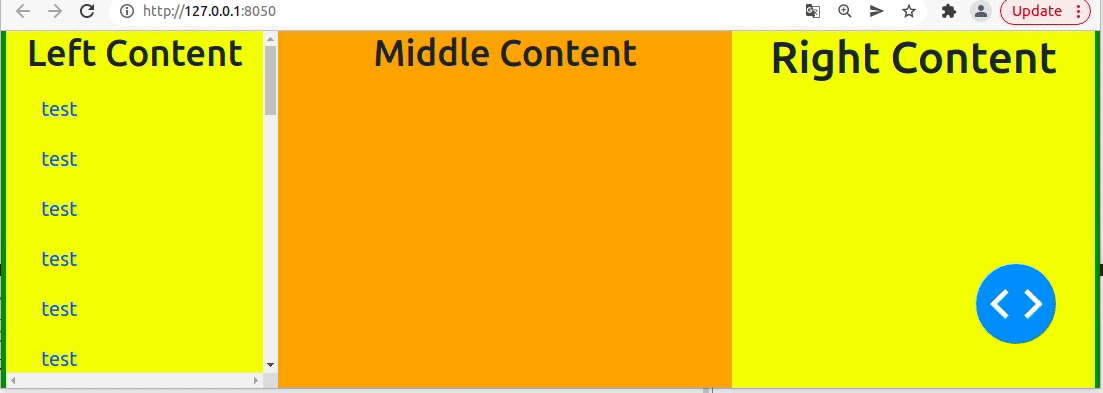

scroll

from dash import Dash, html
import dash_bootstrap_components as dbc


app = Dash(external_stylesheets=[dbc.themes.BOOTSTRAP])

sidebar = dbc.Nav(
    [dbc.NavLink("test", href="/page-1") for i in range(30)],
    pills=True,
    vertical=True,
    # style={"overflow": "scroll", "bottom": 0},
)


app.layout = dbc.Container(
    [
        dbc.Row(
            [
                dbc.Col(
                    [
                        html.H2(
                            "Left Content",
                            className="text-center sticky-top",
                            style={"background-color": "yellow"},
                        ),
                        sidebar,
                    ],
                    className="h-100 overflow-scroll",
                    style={"background-color": "yellow"},
                    width=3,
                    xs=5,
                    sm=4,
                    md=3,
                    lg=3,
                    xl=3,
                ),
                dbc.Col(
                    [
                        html.H2("Middle Content", className="text-center"),
                    ],
                    style={"background-color": "orange"},
                    width=5,
                    xs=1,
                    sm=3,
                    md=5,
                    lg=5,
                    xl=5,
                ),
                dbc.Col(
                    [
                        html.H1("Right Content", className="text-center"),
                    ],
                    style={"background-color": "yellow"},
                    width=4,
                    xs=6,
                    sm=5,
                    md=4,
                    lg=4,
                    xl=4,
                ),
            ],
            className="vh-100"
            # no_gutters=True,
        ),
    ],
    style={
        "background-color": "green",
        "padding": "0 1rem 0 1rem",
        "margin-left": "0",
        "margin-right": "0",
        #   "position": "fixed",
    },
    fluid=True,
)


if __name__ == "__main__":
    app.run_server(debug=True)
6

Thanks again. When I run your code I get the following:

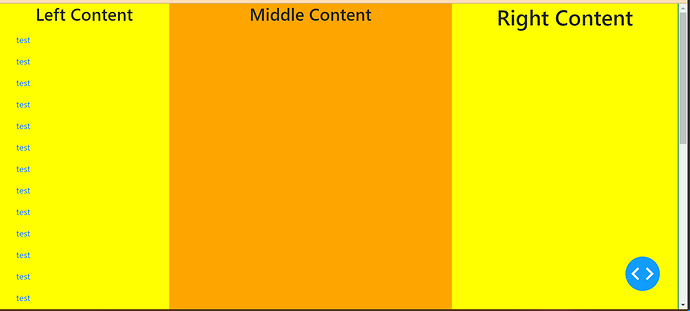

Screenshot 2022-03-13 183537
Screenshot 2022-03-13 1835371924×868 36 KB

So no scrollbar for the Nav element but again a bar for the entire page. Any idea what could be going on here?

In the mean time I have found a way that pretty much achieves what I want:

import dash
import dash_bootstrap_components as dbc
import dash_html_components as html

app = dash.Dash(external_stylesheets=[dbc.themes.BOOTSTRAP])

sidebar = dbc.Container(
    dbc.Nav(
        [dbc.NavLink("test", href="/page-1") for i in range(30)],
        pills=True,
        vertical=True,
    ),
    style={"overflowY": "scroll", "height": "90vh", "background-color": "cyan"},
)


app.layout = dbc.Container(
    [
        dbc.Row(
            [
                dbc.Col(
                    [
                        html.H2("Left Content", className="text-center"),
                        dbc.Row([sidebar], no_gutters=True,),
                    ],
                    style={"background-color": "yellow",},
                    width=3,
                    xs=5,
                    sm=4,
                    md=3,
                    lg=3,
                    xl=3,
                ),
                dbc.Col(
                    [html.H2("Middle Content", className="text-center"),],
                    style={"background-color": "orange"},
                    className="vh-100",
                    width=5,
                    xs=1,
                    sm=3,
                    md=5,
                    lg=5,
                    xl=5,
                ),
                dbc.Col(
                    [html.H1("Right Content", className="text-center"),],
                    style={"background-color": "yellow"},
                    className="vh-100",
                    width=4,
                    xs=6,
                    sm=5,
                    md=4,
                    lg=4,
                    xl=4,
                ),
            ],
            no_gutters=True,
            className="vh-100",
        ),
    ],
    style={
        "background-color": "green",
        "padding": "0 1rem 0 1rem",
        "margin-left": "0",
        "margin-right": "0",
        "position": "fixed",
    },
    fluid=True,
)


if __name__ == "__main__":
    app.run_server(debug=True)

which produces:

Screenshot 2022-03-13 184944
Screenshot 2022-03-13 1849441966×868 38.6 KB

So basically I had to wrap the Nav element into a Container. The only imperfection is that if I fix the height of the container containing the Nav element to 100vh it gets cut off a bit at the bottom depending on the window size (so I put it to 90vh for my screen size). Any idea how I can make it always match up with the lower edge of the page upon resizing the window or using a different screen size?

7

That’s odd - did you copy and paste my example and run it without any changes? What version of dash and dbc are you using?

8

Yes I copy pasted it. I have dash v 2.1.0 and dbc v 1.0.2. I updated dash to the latest version 2.2.0 but the behaviour is the same.

9

Oh, I see what’s wrong. You actually aren’t using dbc 1.0.2.

You can include this to see what version is running in the app:

print(dbc.__version__)

Also, if you are on the current version of dbc, then no_gutters=True doesn’t work. You need to set the gutters with the utility classes: className="g-0"

Here is a cheatsheet you might find helpful: https://dashcheatsheet.pythonanywhere.com/

You can find more info in this post: Dash Bootstrap Components Cheatsheet

10

You’re right. If I print the dbc version from the running app it gives v 0.8.3. Why is it not using the same version as the anaconda environment I’m running it from and how can I change that?

11

I haven’t used anaconda, so I’m not sure.

If anyone else knows the answer, please feel free to jump in here :slight_smile:
