@delsim My current goal is to decuple django-plotly-dash, this diagram should help at doing my project justice.
The problem I have with django-plotly-dash is the speed and I really see dash as being able to scale better as a separate entity with pages:
For example believe django-plotly-dash is running the dash app in a way that causes lag and I’m trying to keep dash a quick independent hosted frontend framework:
[Django->[<~[[Postgres]-> [Session]->Dash->html render]]
where I’m trying to setup:
[channels->app.py]<-~- <(0.0)> ~-~>[API<-Django<~>Postgres]
The only issue I’m currently facing with this setup is establishing a save of the validators I get returned from django, to be saved to a location within dash where the app keeps a fixed key, value storage. think Logged in = True or cookies → Sent to dash → Saved in sessions → if cookie in sessions → return logged in navbar else retun default navbar type of problem.
This is what I was able to build on the Django side of things is a basicAuth to manage the API Request and Login user authentication (working):
api = NinjaAPI()
class BasicAuth(HttpBasicAuth):
def authenticate(self, request, username, password):
# Request all Users on Application
users = User.objects.all()
# check username vs user in database
user_in_users = users.values_list('username', flat=True)
# print('user_in_users', list(user_in_users))
emails = users.values_list('email', flat=True)
# print('emails', list(emails))
# check if username or email in database return login or none
if username in list(user_in_users):
user = auth_authenticate(username=username, password=password)
if user is not None:
def cookie_save_user_id_function(request, current_time):
signer = Signer()
user_id = User.objects.get(username=username).id
signed_obj = signer.sign_object({'username': username, 'email': user.email,'id': user_id, 'logged_in': True, 'time_logged_in': current_time})
return {'username': username, 'email': user.email,'id': user_id, 'logged_in': True, 'time_logged_in': current_time, 'signed_obj': signed_obj}
user = authenticate(request, username=username, password=password)
if user is not None:
# login user
login(request, user)
central_time = pytz.timezone('US/Central')
current_time = datetime.now(central_time)
current_time = current_time.strftime("%Y-%m-%d %H:%M:%S")
cookie = cookie_save_user_id_function(request, current_time)
# grab httpresponse
response = HttpResponse('You are logged in')
# set cookie
response.set_cookie('cookie', cookie['signed_obj'])
print(Color.GREEN+'Was able to login user, saved cookie of user_id to logged in', cookie)
print(Color.CYAN + 'User:', user, Color.RESET + f'Just logged into the application at: {current_time}')
# the credentials are valid
return cookie
else:
print(Color.RED +'User was found but not able to authenticate on django')
# the credentials are invalid
return None
else:
# the credentials are invalid
return None
elif username in list(emails):
print(Color.YELLOW + 'Wasn\'t able to find Username, trying email')
print(Color.GREEN + 'Email in database')
# gets username from email
u = User.objects.get(email=username)
def cookie_save_user_id_function(request, current_time):
signer = Signer()
user_id = User.objects.get(email=username).id
signed_obj = signer.sign_object(
{'username': username, 'email': user.email, 'id': user_id, 'logged_in': True,
'time_logged_in': current_time})
return {'username': u.username ,'email': username, 'id': user_id, 'logged_in': True, 'time_logged_in': current_time, 'signed_obj': signed_obj}
# checks authentication but doesn't login
# user = auth_authenticate(username=u, password=password)
# authenticate
user = authenticate(request, username=u, password=password)
if user is not None:
print('testing username')
print(u.username)
# login user
login(request, user)
central_time = pytz.timezone('US/Central')
current_time = datetime.now(central_time)
current_time = current_time.strftime("%Y-%m-%d %H:%M:%S")
cookie = cookie_save_user_id_function(request, current_time)
# grab httpresponse
response = HttpResponse('You are logged in')
# set cookie
response.set_cookie('cookie', cookie['signed_obj'])
print(Color.GREEN + 'Was able to login user, saved cookie of user_id to logged in', cookie['signed_obj'])
print(Color.CYAN + 'User:', user, Color.RESET + f'Just logged into the application at: {current_time}')
# the credentials are valid
return cookie
else:
print(Color.RED + 'Username / Email not in database')
# the credentials are invalid
return None
This just checks username & password in the Django database and returns either dic or None. Then a data file in dash hosts a request that provides users username & password from a forum on dash side of the application that looks like this (working):
import requests
import colorama
def login(username, password):
# point to django domain for api login
url_login = f'http://{username}:{password}@127.0.0.1:8000/api/login'
response = requests.get(url_login, auth=(username, password))
if response.status_code == 200:
print(colorama.Fore.GREEN + f"Login Successful: {response.json()['httpuser']}")
print(colorama.Fore.YELLOW + f'{response.headers}')
print(colorama.Fore.RESET)
print(response.json())
return response.json()
else:
print(colorama.Fore.RED + f"Login Failed: {username}")
print(colorama.Fore.RESET)
return False
if __name__ == '__main__':
# login('pip@gmail.com', 'NeverTellMeTheOdds')
# login('pip', 'NeverTellMeTheOdds')
Then in my dash app.py file, I have the initial setup:
from flask import Flask
from uuid import uuid4
import dash
from dash.dependencies import Output, Input, State, DiskcacheManager
from dash_labs.session import session, setup_sessions
from dash_labs.session.backends.diskcache import DiskcacheSessionBackend
import dash_mantine_components as dmc
import dash_bootstrap_components as dbc
from dash_iconify import DashIconify
import diskcache
server = Flask(__name__)
launch_uid = uuid4()
app = Dash(
__name__,
assets_url_path="assets",
external_stylesheets=[
"https://use.fontawesome.com/releases/v6.2.1/css/all.css",
dbc.themes.SKETCHY,
],
use_pages=True,
server=server,
)
setup_sessions( app, DiskcacheSessionBackend(directory='./session-cache'))
.....html layout components for body.....
login_form = dbc.Form(
[
dbc.Col(
[
dmc.Stack(
children=[
dmc.TextInput(
label="Your Username or Email:",
style={"width": "100%"},
id="login-username",
),
],
)
]
),
dbc.Col(
[
dmc.PasswordInput(
label="Your password:",
style={"width": "100%"},
placeholder="Your password",
icon=DashIconify(icon="bi:shield-lock"),
id="login-password",
)
]
),
],
className="mb-5",
)
login_modal = dmc.Card(
children=[
dmc.CardSection(
dmc.Image(
src=dash.get_asset_url("gif/login_banner.gif"),
height=160,
)
),
dmc.Group(
[
dmc.Text("Access Account", weight=500),
],
position="apart",
mt="md",
mb="xs",
),
login_form,
dmc.Button(
"Login",
variant="light",
color="blue",
fullWidth=True,
mt="md",
radius="md",
id="login-button",
),
],
withBorder=True,
shadow="sm",
radius="md",
style={"width": 350},
id="login-modal-form",
)
login_to_account = dmc.Modal(
children=[
html.Div(id="welcome-back-alert"),
html.Div(id="User-Avatar"),
login_modal,
],
id="login-account-modal",
overflow="outside",
opened=False,
size="sm",
)
layout=html.Div([login_to_accoun, dmc.Button(
"Login",
variant="light",
color="blue",
fullWidth=True,
mt="md",
radius="md",
id="login-button",
),])
Lastly I setup a @app.callback to manage the adding user into a dash-hosted variable that will carry over multiple pages (NOT WORKING):
# Store Data through Callbacks
@app.callback(
# Output("store", "data"), hiding the modal on success
[
Output("welcome-back-alert", "children"),
Output("login-modal-form", "hidden"),
Output("User-Avatar", "children"),
],
[
Input("login-button", "n_clicks"),
Input("login-username", "value"),
Input("login-password", "value"),
],
prevent_initial_call=True,
)
def get_data(login_button, username, password):
if login_button is None:
pass
elif login_button:
if username and password is not None:
login_test = login(username, password)
if login_test:
utils.cookieJar.set(f"ActiveUsers", login_test['httpuser']['signed_obj'], path='/')
utils.add_user(cookie=login_test["httpuser"]["signed_obj"], user_id=login_test["httpuser"]["id"], username=login_test["httpuser"]["username"], email=login_test["httpuser"]["email"], time_logged_in=login_test["httpuser"]["time_logged_in"], avatar='https://external-content.duckduckgo.com/iu/?u=https%3A%2F%2Fvignette.wikia.nocookie.net%2F2007scape%2Fimages%2F0%2F0a%2FWise_Old_Man.png%2Frevision%2Flatest%3Fcb%3D20171211175901&f=1&nofb=1&ipt=33ca4010bb53bcedb0cf0c745a4732c5dff3282fd9dbbf1dbc97efff2582ada4&ipo=images')
# todo: Added a cache option might use might remove depending on how I want to handle the user data
cache = diskcache.Cache(
f"./cache/accounts/{login_test['httpuser']['signed_obj']}"
)
DiskcacheManager(cache, cache_by=[lambda: launch_uid], expire=259200)
# Idk if i should use cache for this problem?? Think session would work 👀
# cache["username"] = login_test["HTTP user"]["username"]
# cache["email"] = login_test["httpuser"]["email"]
# cache["user_id"] = login_test["httpuser"]["id"]
# cache["logged_in"] = True
# cache["time_logged_in"] = login_test["httpuser"]["time_logged_in"]
# cache["signed_obj"] = login_test["httpuser"]["signed_obj"]
session.clear()
session.user = login_test["httpuser"]
print('Testing Session')
print(session)
print()
values = session.values
print('values')
session_value = session.user
print("testing session on login This is the session value")
print(session_value())
print(type(session_value()))
print(session_value()["username"])
welcome_back_alert = dmc.Alert(
f'Hey, {login_test["httpuser"]["username"]} you just logged in. Best way to take full advantage of this powerful Ai is to build up your account and we will help get you new upgrades, tips, tools & cheatcodes.',
title="Welcome Back to Maply.io",
color="green",
id="welcome-back-alert",
withCloseButton=True,
hide=False,
)
# TODO: Add a smart render for the logged in users avator to show the user's avitar is logged in
# currently hardcoded Wise Old Man
# saving it to store, and hiding the modal
return (
welcome_back_alert,
True,
html.Center(
html.Img(
src=dash.get_asset_url(
f"static/profile_images/Wise_Old_Man.png"
),
style={"width": "100px", "height": "250px"},
)
),
)
else:
pass
else:
pass
Hope that explains the situation more clearly. I’m able to retreave the django login authentication from the @callback but not able to setup much past that point. Figure what I need is a way to refer to session.user but when I attempt to open it i’m unable on anything other than the @callback
if cookie in session. user.keys:
return html.div(''logged in)
else:
return html.dive('Annonymous user')
Also, would like to thank @jinnyzor & @AnnMarieW helping me get this far. (Still Active Problem: 12-31-22)

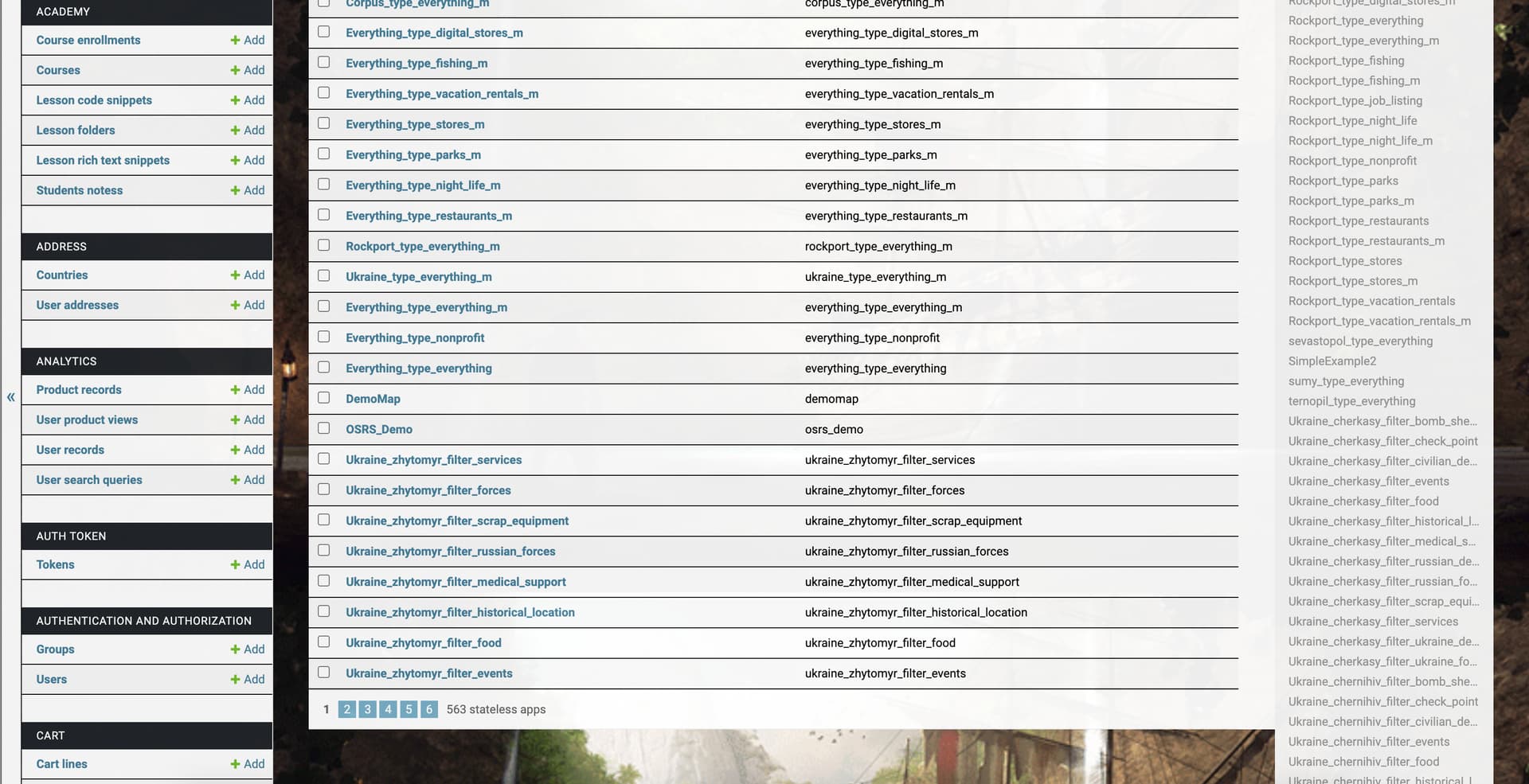

Idk if that’s something to brag about or atrocious. My goal was to build software to map events within the Ukraine war. My issue was with such a large dictionary of individual maps & data I wouldn’t have been able to set all this up within one app, I figured my best approach would be to set up each location as its own map and each filter as its own map. Finally I’ve decided to experiment with a new approach entirely with the scope of how large a project I’ve taken on, what is your thoughts on the schema you setup vs the one I’ve been setting up above? (As in the previous post) what limitations or improvements would you expect?
