Hi!

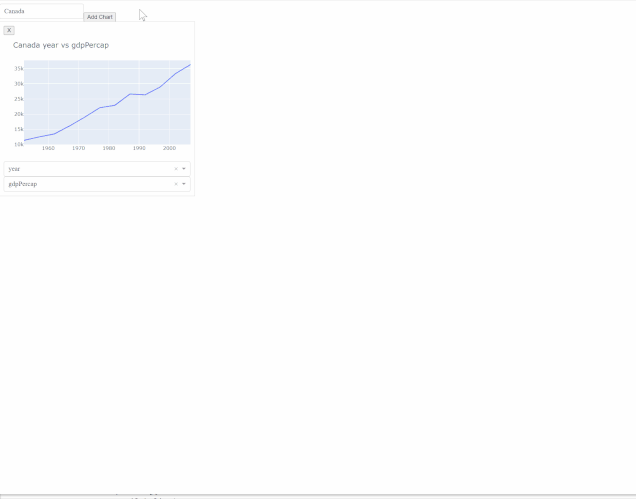

I got this to work by adding a button with an “X” that would trigger the callback to remove the chart.
Here is this feature added to the example app from 📣 Dash v1.11.0 Release - Introducing Pattern-Matching Callbacks
import dash
from dash.dependencies import Input, Output, State, ALL, MATCH
import dash_html_components as html
import dash_core_components as dcc
import plotly.express as px
import json
df = px.data.gapminder()
app = dash.Dash(__name__)
app.layout = html.Div(
[
html.Div(
children=[
dcc.Dropdown(
options=[{"label": i, "value": i} for i in df.country.unique()],
value="Canada",
id="country",
style={"display": "inline-block", "width": 200},
),
html.Button(
"Add Chart",
id="add-chart",
n_clicks=0,
style={"display": "inline-block"},
),
]
),
html.Div(id="container", children=[]),
]
)
def create_figure(column_x, column_y, country):
chart_type = px.line if column_x == "year" else px.scatter
return (
chart_type(df.query("country == '{}'".format(country)), x=column_x, y=column_y,)
.update_layout(
title="{} {} vs {}".format(country, column_x, column_y),
margin_l=10,
margin_r=0,
margin_b=30,
)
.update_xaxes(title_text="")
.update_yaxes(title_text="")
)
@app.callback(
Output("container", "children"),
[
Input("add-chart", "n_clicks"),
Input({"type": "dynamic-delete", "index": ALL}, "n_clicks"),
],
[State("container", "children"), State("country", "value")],
)
def display_dropdowns(n_clicks, _, children, country):
default_column_x = "year"
default_column_y = "gdpPercap"
input_id = dash.callback_context.triggered[0]["prop_id"].split(".")[0]
if "index" in input_id:
delete_chart = json.loads(input_id)["index"]
children = [
chart
for chart in children
if "'index': " + str(delete_chart) not in str(chart)
]
else:
new_element = html.Div(
style={
"width": "23%",
"display": "inline-block",
"outline": "thin lightgrey solid",
"padding": 10,
},
children=[
html.Button(
"X",
id={"type": "dynamic-delete", "index": n_clicks},
n_clicks=0,
style={"display": "block"},
),
dcc.Graph(
id={"type": "dynamic-output", "index": n_clicks},
style={"height": 300},
figure=create_figure(default_column_x, default_column_y, country),
),
dcc.Dropdown(
id={"type": "dynamic-dropdown-x", "index": n_clicks},
options=[{"label": i, "value": i} for i in df.columns],
value=default_column_x,
),
dcc.Dropdown(
id={"type": "dynamic-dropdown-y", "index": n_clicks},
options=[{"label": i, "value": i} for i in df.columns],
value=default_column_y,
),
],
)
children.append(new_element)
return children
@app.callback(
Output({"type": "dynamic-output", "index": MATCH}, "figure"),
[
Input({"type": "dynamic-dropdown-x", "index": MATCH}, "value"),
Input({"type": "dynamic-dropdown-y", "index": MATCH}, "value"),
Input("country", "value"),
],
)
def display_output(column_x, column_y, country):
return create_figure(column_x, column_y, country)
if __name__ == "__main__":
app.run_server(debug=True)
