Multiheader tables in Plotly/Python

đź“Š Plotly Python
1

Hello Guys, I was trying to replicate something like this table in Plotly. The table has multiheaders and different conditional formatting… I would love some direction and advice on how to go on about doing this and even if it is possible using plotly.
Thanks

image1555Ă—283 9.92 KB

2

I think you can use dash_ag_grid for this goal. Below is my sample based on dash_ag_grid documentation here: https://dashaggrid.pythonanywhere.com/

import dash_ag_grid as dag
from dash import Dash, html, dcc


app = Dash(__name__)

columnDefs = [{"headerName":"Example_1", "children":[{"field":"Row ID"},
                                                    {"field":"make"}]},
              {"headerName":"Example_2", "children":[{"field":"model"},
                                                    {"field":"price",
                                                     "valueFormatter":{"function":"""d3.format(",.2f")(params.value)""",
                                                                                       "type":"rightAligned"}}]}
]

data = [
    {"make": "Toyota", "model": "Celica", "price": 35000},
    {"make": "Ford", "model": "Mondeo", "price": 32000},
    {"make": "Porsche", "model": "Boxster", "price": 72000},
    {"make": "BMW", "model": "M50", "price": 60000},
    {"make": "Aston Martin", "model": "DBX", "price": 190000},
]

app.layout = html.Div(
    [
        dcc.Markdown("This grid shows the grid assigned ids"),
        dag.AgGrid(
            columnDefs=columnDefs,
            rowData=data,
            columnSize="sizeToFit",
            defaultColDef={"resizable": True, "sortable": True, "filter": True},
            getRowStyle={"styleConditions":[{"condition":"params.data.make === 'Ford'",
                                            "style":{"backgroundColor":"orange"}}]}
        ),
    ],
    style={"margin": 20},
)

if __name__ == "__main__":
    app.run_server(debug=False)

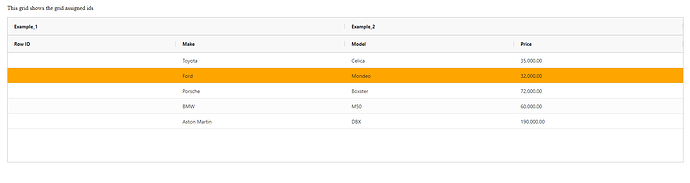

Screenshot 2023-09-22 115802
Screenshot 2023-09-22 1158021902Ă—507 7.82 KB

2 Likes
3

Thanks a lot for this, this seems very straightforward. However, I did have one question. Would it be possible to export this dash table to embed onto html? either inline or explicitly as a png/html as you could do with the Plotly graphs? My priimary usecase is embedding different tables and graphs onto html and exporting the whole thing as a PDF so I was wondering if this would play into the situation.
Thanks!
