Interaction with ipywidget slider is slow (performance is much lower than a matplotlib equivalent)

[nvaytet]

I am using an ipywidgets slider to slice a 2D numpy array along the y dimension in a Jupyter notebook.

The interaction with the slider seems very sluggish/laggy when using plotly. An equivalent matplotlib solution is much faster/reactive. I post a copy of my code below (the poor performance is more visible when 2 traces are plotted).

Am I doing anything wrong?

If not, what could be the reason?
I am suspecting some of the performance loss could come from copies of the data being made between the numpy arrays and plotly's Javascript backend. Maybe plotly does a lot of extra work behind the scenes that also slow things down? (i’ve tried to keep the yrange constant to avoid constant auto layout calculation but this does not seem to help).

Thanks for any help!

import plotly.graph_objects as go
import ipywidgets as widgets
import numpy as np
import IPython.display as disp
import matplotlib.pyplot as plt

%matplotlib notebook
​
N = 1000
M = 500
xx = np.linspace(0.0, 12.0, N)
yy = np.linspace(0.0, 6.0, N)
x, y = np.meshgrid(xx, yy)
a = [np.sin(np.sqrt(x**2 + y**2))]
a.append(np.random.normal(a[0] * 0.1, 0.05))

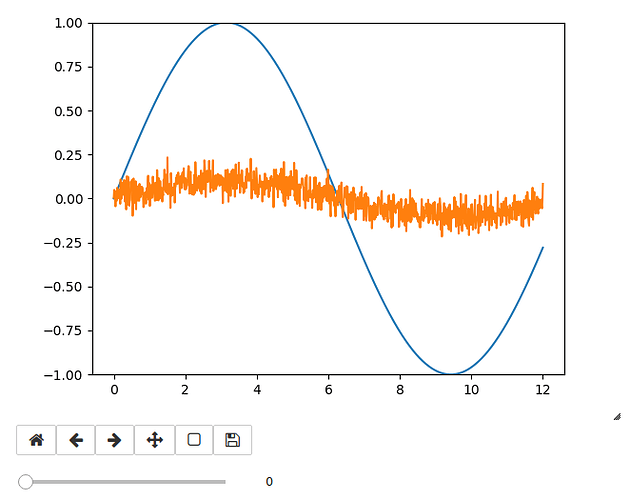

fig1, ax = plt.subplots(1, 1)
ax.plot(xx, a[0][:, 0])
ax.plot(xx, a[1][:, 0])
ax.set_ylim([-1, 1])

sl = widgets.IntSlider(
                value=0,
                min=0,
                max=M,
                step=1,
                continuous_update=True,
                readout=True)

def update_y(change):
    for i, line in enumerate(ax.lines):
        line.set_ydata(a[i][:, change["new"]])
sl.observe(update_y, names="value")

disp.display(sl)

​

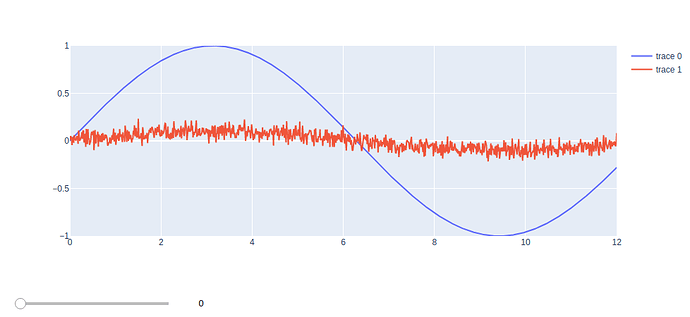

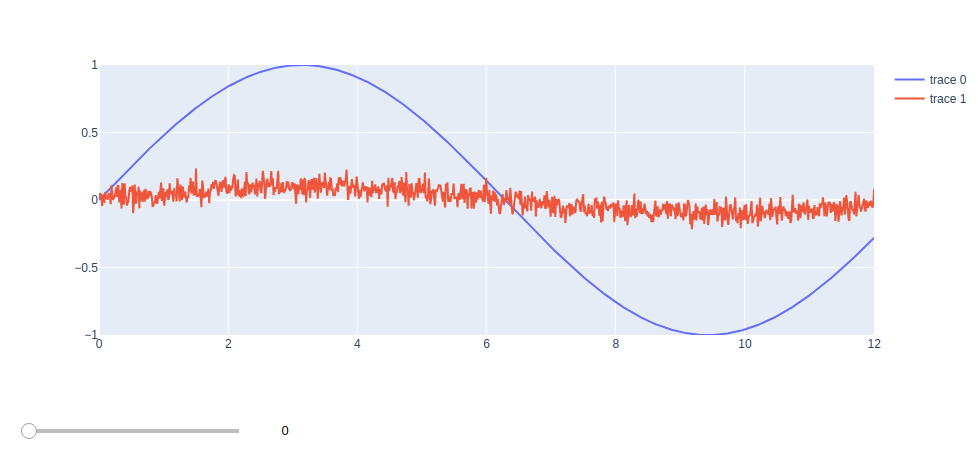

fig2 = go.FigureWidget(layout={"yaxis": {"range": [-1, 1]}})
fig2.add_trace(go.Scatter(x=xx, y=a[0][:, 0]))
fig2.add_trace(go.Scatter(x=xx, y=a[1][:, 0]))

sl2 = widgets.IntSlider(
                value=0,
                min=0,
                max=M,
                step=1,
                continuous_update=True,
                readout=True)

def update_y2(change):
    for i in range(len(fig2.data)):
        fig2.data[i].y = a[i][:, change["new"]]
sl2.observe(update_y2, names="value")

disp.display(widgets.VBox((fig2, sl2)))

[Emmanuelle]

Hi @nvaytet you can probably gain a factor of two by using fig.batch_update() as in https://plot.ly/python/click-events/. Without it update for each trace is being sent to the front-end individually.

[nvaytet]

Hi @Emmanuelle, thanks for the tip. I did not know about batch_update.
This probably answers my other question i posted recently: Is it possible to update multiple traces with different value arrays in one go?
thanks!

[Emmanuelle]

Yes, indeed :-). Maybe we need to add more examples with batch_update to the documentation!

[nvaytet]

Just in case someone finds it useful:
another example with pythreejs showing also a very good performance:

import pythreejs as p3
import ipywidgets as widgets
import numpy as np
import IPython.display as disp

N = 1000
M = 500
xx = np.linspace(0.0, 12.0, N)
yy = np.linspace(0.0, 6.0, N)
x, y = np.meshgrid(xx, yy)
a = [np.sin(np.sqrt(x**2 + y**2))]
a.append(np.random.normal(a[0] * 0.1, 0.05))

pts1 = np.zeros([N, 3])
pts1[:, 0] = xx * 0.2
pts1[:, 1] = a[0][:, 0]
arr1 = p3.BufferAttribute(array=pts1)
geometry1 = p3.BufferGeometry(attributes={
    'position': arr1,
})
material1 = p3.LineBasicMaterial(color="red", linewidth=4)
line1 = p3.Line(geometry=geometry1,
                          material=material1)
pts2 = np.zeros([N, 3])
pts2[:, 0] = xx * 0.2
pts2[:, 1] = a[1][:, 0]
arr2 = p3.BufferAttribute(array=pts2)
geometry2 = p3.BufferGeometry(attributes={
    'position': arr2,
})
material2 = p3.LineBasicMaterial(color="blue", linewidth=4)
line2 = p3.Line(geometry=geometry2,
                          material=material2)
width = 800
height= 500
# Create the threejs scene with ambient light and camera
camera = p3.PerspectiveCamera(position=[0, 0, 5],
                                        aspect=width / height)
key_light = p3.DirectionalLight(position=[0, 10, 10])
ambient_light = p3.AmbientLight()
scene = p3.Scene(children=[
    line1, line2, camera, key_light, ambient_light])
controller = p3.OrbitControls(controlling=camera)
# Render the scene into a widget
renderer = p3.Renderer(camera=camera, scene=scene,
                                 controls=[controller],
                                 width=width,
                                 height=height)
sl = widgets.IntSlider(
                value=0,
                min=0,
                max=N-1,
                step=1,
                continuous_update=True,
                readout=True)
def update_y(change):
#     for i, line in enumerate(ax.lines):
#         line.set_ydata(a[i][:, change["new"]])
    pts1[:, 1] = a[0][:, change["new"]]
    geometry1.attributes["position"].array = pts1
    pts2[:, 1] = a[1][:, change["new"]]
    geometry2.attributes["position"].array = pts2
sl.observe(update_y, names="value")
disp.display(sl)
renderer
