How to correctly data type & input in Dash AG GRID? and other issues

[kabure]

Hello guys,

I have switched from Dash DataTable to DASH AG GRID after this post:

QUESTION ABOUT FORMATTING SOME VALUES IN A DASH DATATABLE (WHEN USING A TRANSPOSED TABLE)

In the question above, I focused on a specific problem, but after switching my table to AG GRID I started to find new limitations as I have text, boolean, and others data types and I can’t find solutions to deal with it.

Below are some of the new issues/limitations I found:

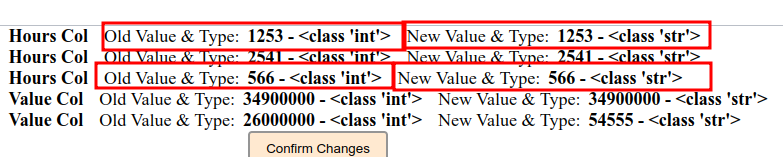

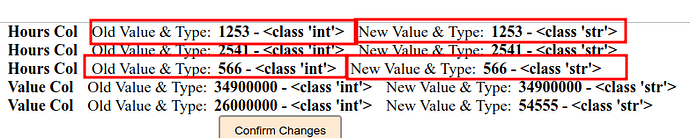

• Sometimes, the user does not add/change anything but because of as the DASH AG GRID recognize the data types the changes are triggered;




• I can’t highlight a Specific cell based on which one was changed

• I can’t find a way to force the cells to render the entire values inside the cells without the …

Iin dash datatable we could deal with this kind of problem by simple using:

style_data={"whiteSpace": "normal",
            "overflow": "hidden",
            "textOverflow": "ellipsis"}

__________________________________


Below I will add a Minimal reproducible example

import dash
from dash import html, Dash, Output, Input, State, dcc
import dash_ag_grid as dag
import pandas as pd

list_of_vals = [
    {
        "Val ID": "9729",
        "Year Col": "2017",
        "Hours Col": 1253.0,
        "Value Col": 31950000.0,
        "Text Col": "testing a random text which is long enough to wrap",
        "Bool Col": "No",
        "Date Col": "2023/01/02",
        "Link Col": "https://www.google.com",
    },
    {
        "Val ID": "9733",
        "Year Col": "2016",
        "Hours Col": 2541.0,
        "Value Col": 29995000.0,
        "Text Col": "testing a random text which is long enough to wrap",
        "Bool Col": "Yes",
        "Date Col": "2023/01/02",
        "Link Col": "https://www.google.com",
    },
    {
        "Val ID": "9837",
        "Year Col": "2019",
        "Hours Col": 566.0,
        "Value Col": 34900000.0,
        "Text Col": "testing a random text which is long enough to wrap",
        "Bool Col": "No",
        "Date Col": "2023/01/02",
        "Link Col": "https://www.google.com",
    },
    {
        "Val ID": "9507",
        "Year Col": "2013",
        "Hours Col": 2732.0,
        "Value Col": 26000000.0,
        "Text Col": "testing a random text which is long enough to wrap",
        "Bool Col": "Yes",
        "Date Col": "2023/01/02",
        "Link Col": "https://www.google.com",
    },
    {
        "Val ID": "9805",
        "Year Col": "2018",
        "Hours Col": 1543.0,
        "Value Col": 31500000.0,
        "Text Col": "testing a random text which is long enough to wrap",
        "Bool Col": "Yes",
        "Date Col": "2023/01/02",
        "Link Col": "https://www.google.com",
    },
]

df = pd.DataFrame(list_of_vals)
df = df.set_index("Val ID").T
df = df.reset_index().rename(columns={"index": "Val ID"})
data_list = [item for item in df.to_dict(orient="records")]
columns_list = list(df.columns)

app = Dash()

app.layout = html.Div(
    [
        dcc.Store(id="changed-cell", data=[]),
        html.H2("Testing Dash AG GRID"),
        dag.AgGrid(
            rowData=data_list,
            columnDefs=[{"field": "Val ID", "editable": False}]
            + [
                {
                    "field": c,
                    "valueFormatter": {"function": "FormatNumbersByRow(params)"},
                    # "editable": {"function": "params.data['Val ID'] !== 'Year Col'"}
                }
                for c in columns_list
                if c != "Val ID"
            ],
            defaultColDef={"editable": True, "flex": 1},
            dashGridOptions={
                "undoRedoCellEditing": False,
                "undoRedoCellEditingLimit": 20,
            },
            id="ag-grid-table",
        ),
        dcc.Store(id="original-data", data=data_list),
        html.Div(id="edited-table-output"),
    ],
    style={"padding": "16px"},
)


@app.callback(
    Output("changed-cell", "data", allow_duplicate=True),
    Input("ag-grid-table", "cellValueChanged"),
    Input("ag-grid-table", "rowData"),
    # Input("ag-grid-table", "active_cell"),
    State("changed-cell", "data"),
    State("original-data", "data"),
    prevent_initial_call=True,
)
def update_table(changed_value, data_table, changes_stored, og_data):  # active_cell,

    triggered_id = [t["prop_id"] for t in dash.callback_context.triggered][0]

    if changed_value is not None:

        key = changed_value[0]["colId"]

        changed_column = changed_value[0]["data"]["Val ID"]
        row_index = changed_value[0]["rowId"]
        new_value = changed_value[0]["value"]
        change_id = f"{key}-{changed_column}"

        for row in og_data:
            if row["Val ID"] == changed_column:
                print(row)
                old_value = row[key]
            else:
                pass

        new_changes = {
            "change_id": change_id,
            "val-ID": key,
            "index_row": row_index,
            "column": changed_column,
            "old_value": old_value,
            "new_value": new_value,
        }

        changes_stored = [
            changes_stored
            for changes_stored in changes_stored
            if changes_stored["change_id"] != change_id
        ]
        changes_stored.append(new_changes)

        return changes_stored

    return dash.no_update


def gen_update_row_btn(changes):
    return html.Div(
        [
            html.Div(
                [
                    html.Div(
                        [html.Div(f"val-ID: "), html.B(changes["val-ID"])],
                        style={"display": "flex", "gap": "8px", "marginRight": "16px"},
                    ),
                    html.Div(
                        [html.Div(f"Changed Column: "), html.B(changes["column"])],
                        style={"display": "flex", "gap": "8px", "marginRight": "16px"},
                    ),
                    html.Div(
                        [
                            html.Div(f"Old Value & Type: "),
                            html.B(
                                f'{changes["old_value"]} - {type(changes["old_value"])}'
                            ),
                        ],
                        style={"display": "flex", "gap": "8px", "marginRight": "16px"},
                    ),
                    html.Div(
                        [
                            html.Div(f"New Value & Type: "),
                            html.B(
                                f'{changes["new_value"]} - {type(changes["new_value"])}'
                            ),
                        ],
                        style={"display": "flex", "gap": "8px", "marginRight": "16px"},
                    ),
                ],
                style={"display": "flex"},
            ),
        ],
        className="",
    )


@app.callback(Output("edited-table-output", "children"), Input("changed-cell", "data"))
def update_d(cc_data):
    print(cc_data)
    if cc_data == []:
        return None
    else:
        list_of_changes_to_confirm = [gen_update_row_btn(change) for change in cc_data]
        if len(cc_data) == 0:
            return None
        elif len(cc_data) == 1:
            return html.Div(
                [
                    html.Div(list_of_changes_to_confirm),
                    html.Div(
                        html.Button(
                            "Confirm Changes",
                            id={
                                "type": "confirm-all-btn",
                                "id": "test",
                            },
                            className="",
                        ),
                        className="textCenter bottom16",
                    ),
                ]
            )
        else:
            return html.Div(
                [
                    html.Div(list_of_changes_to_confirm),
                    html.Div(
                        html.Button(
                            "Confirm Changes",
                            id={
                                "type": "confirm-all-btn",
                                "id": "test",
                            },
                            className="",
                        ),
                        className="textCenter bottom16",
                    ),
                ]
            )


if __name__ == "__main__":
    app.run_server(debug=True, port=8054)

and the content of assets/agGridFunctions.js (I’ve added the console.log to help to validate it, but it only works for the numerical values =/ )

var dagfuncs = (window.dashAgGridFunctions = window.dashAgGridFunctions || {});

dagfuncs.Intl = Intl;

dagfuncs.FormatNumbersByRow = function(params) {
   if (isNaN(params.value)) {
        return params.value;
    }
    if (params.data["Val ID"] == "Text Col") {
        console.log(params.value);
        return params.value.toString();
    }
    if (params.data["Val ID"] == "Hours Col") {
        console.log(params.value);
        return parseInt(params.value);
    }
    if (params.data["Val ID"] == "Bool Col") {
        console.log(params.value);
        return params.value.toLowerCase() === 'yes';
    }
    if (params.data["Val ID"] == "Value Col") {
        return Intl.NumberFormat("en-US", {
            style: "currency",
            currency: "USD",
            minimumFractionDigits: 0,
            maximumFractionDigits: 0,
          }).format(params.value);
    }
}

If you have any info about how to proceed to solve any of the issues I mentioned above, I would love to know it; Any help is appreciated

[AnnMarieW]

Hi @kabure

You certainly picked a very advanced use-case for your first dash-ag-grid.
Just so you know, this would be much easier with AG Grid Enterprise - it has a built-in pivot mode:

React Data Grid: Pivoting

If you don’t want to buy a license, it’s still possible to do this with the community version, it will just take a little more coding.

For the truncated values, you have lots of options.

• The user can adjust the width by dragging the handle in the header.
• If you want the text to wrap see:
  Row Height | Dash for Python Documentation | Plotly
• There are several other options for column width, see Column Sizing | Dash for Python Documentation | Plotly

For different data types by row, set the cellDataType to False so the inference is turned off. For more info see Cell Data Types | Dash for Python Documentation | Plotly.

You can set different cell editors per line. See Provided Cell Editors | Dash for Python Documentation | Plotly. and also React Data Grid: Cell Editors

               {
                    "field": c,
                    "valueFormatter": {"function": "FormatNumbersByRow(params)"},
                    "cellEditorSelector": {"function": "cellEditorSelector(params)"},
                    'cellDataType': False
                }

dagfuncs.cellEditorSelector = function(params) {
    if (params.data["Val ID"] == "Text Col") {
        return {
            component: "agTextCellEditor",
        }
    }
    if (["Hours Col", "Values Col"].includes(params.data["Val ID"])) {
        return {
            component: "agNumberCellEditor",
        }
    }
    if (params.data["Val ID"] == "Bool Col") {
        return {
          component: 'agSelectCellEditor',
          params: {
            values: ['Yes', 'No'],
          },
          popup: true,
        };
    }
    return undefined;
}

You could have actual boolean values instead of the select editor, and it could render as a checkbox. If you can change the date format to yyyy-mm-dd you could also easily add a date editor component.

Here’s a post on how to highlight edited values Dash AG Grid single cell styling after cell edit - #2 by jinnyzor

[kabure]

Hello @AnnMarieW

Thank you so much, AGAIN, for all the info, dear!

EDIT: I have implemented the height & Data type solutions and both them worked like a charm
The highlight thing also worked, but it has some issues that I have asked for jinnyzor and Cantelli in the thread you mentioned

I have two extra questions that I would like to ask you if you have some time to take a look (if you prefer, I can create a new topic)
1 - One of the fields is a https link… There’s a way to transform it in a hyperlink? I tried to implement a solution I found in the docs but seems it only works for columns

2 - There’s a way to avoid that the inputs be empty values? I’m asking this because I did note that if I have a numerical cell and I try to input a different data type as text, it highlights the cell in red and the cell becomes empty/None instead of rejecting the new input, and if I press the key E it will raise an error (as you can see in the .gif)

I think that the solution here would be to keep to “oldValue” when the “newValue” is null/None

EDIT: PLEASE, DON’T WORRY ABOUT THE SECOND ISSUE! I HAVE FOUND A SOLUTION TO IT

Dash AG Grid: "undoRedoCellEditing" not working after changing rowData in callback

Something like this example i have found? But this is javaskript dash, isn’t valueSetter: params => { validate(params.newValue, onSuccess, onFail); return false; }; validate = (newvalue, success, fail) => { if (isValid(newValue)) { success(); } else { fail(); } }; onSuccess = () => { // do transaction update to update the cell with the new value }; onFail = () => { // update some meta data property that highlights the cell signalling that the value has failed to valida…

Do you have any experience with these this new two issues?

PS: I have added a new Link Colin the MRE in the main thread message

Again, thank you for all your help, and thank you in advance for the new help

[AnnMarieW]

Hi @kabure

Glad you found a solution to the second issue

For the link you could use a cell renderer. The easiest solution might be using the built-in Markdown component. If you want to create your own custom component, note that it needs to be defined in a different namespace window.dashAgGridComponentFunctions

Learn more about cell renderers and custom components here:

Cell Renderer Components | Dash for Python Documentation | Plotly

There is an example of different cell renderers per row in the docs.

Many Renderer Components One Column | Dash for Python Documentation | Plotly

[kabure]

Hi @AnnMarieW

Thank you so much for the references!

After some tests and headache, I just found the correct way to use a custom component to deal with the link:

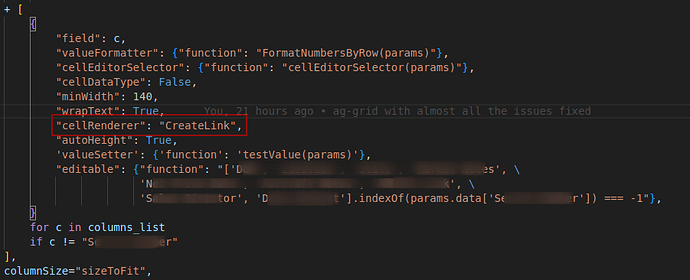

The change in the agGrid declaration:

The custom component:

I feel like the biggest part of the challenges I'm facing is caused because of the "columns" are rows :hot_face:

Now it only remains a few smaller things;

I have learned a lot about the potential of AG-GRID building this table;

Thank you very much for all the support and references!

[AnnMarieW]

Hi @kabure

Yes - that looks correct to me!

And true, all this would be much, much easier if the data wasn’t transposed. But it’s a good way to demonstrate that the grid is highly customizable
