Add reference lines in scatter plot y axis

I have a scatter plot
where y axis is a column with stock price

can i draw a line for referencing the lower bound and upper bound

@qxlsz

if fig is your scatter plot you have to add two more traces to this figure, one for the lower bound and another for the upper bound:

import pandas as pd
from datetime import datetime
import plotly.graph_objects as go
import numpy as np
df = pd.DataFrame({'date': [datetime(2019, 12, k) for k in range(1,30)],
                   'price': 30+15*np.random.rand(29)})

fig = go.Figure(go.Scatter(x=df['date'], y=df['price']))
fig.add_trace(go.Scatter(x=df['date'], y =[df['price'].max()]*len(df), mode='lines', line_color='red'))
fig.add_trace(go.Scatter(x=df['date'], y =[df['price'].min()]*len(df), mode='lines', line_color='green'))

is there a way to add green color between those two traces and below and above of the traces to be set to different color?

@qxlsz

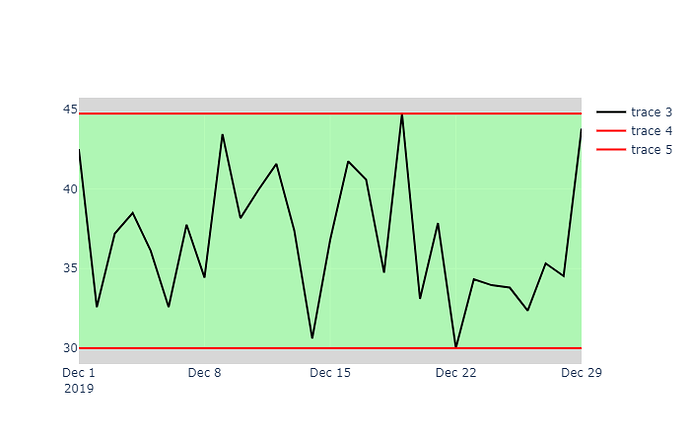

Yes, you can draw fill rectangles below your traces:

import pandas as pd
from datetime import datetime
import plotly.graph_objects as go
import numpy as np
df = pd.DataFrame({'date': [datetime(2019, 12, k) for k in range(1,30)],
                   'price': 30+15*np.random.rand(29)})

prmin, prmax = df['price'].min(), df['price'].max()
dtmin, dtmax = df['date'].min(), df['date'].max()

fig = go.Figure(go.Scatter(x = [dtmin, dtmax, dtmax, dtmin],
                           y = [prmin, prmin, prmax, prmax],
                           mode='lines',
                           fill='toself',
                           fillcolor='#98FB98', #'#42e360',
                           line_color='#98FB98',
                           opacity=0.7,
                           showlegend=False,
                           hoverinfo='none'))
h =1  #the vertical distance from the green area to the upper line
#respectively lower line of the plot window
llim = prmin-h
ulim = prmax+h
fig.add_trace(go.Scatter(x = [dtmin, dtmax, dtmax, dtmin],
                         y =  [llim, llim, prmin, prmin],
                         mode='lines',
                         fill='toself',
                         fillcolor='#d7d7d7',
                         line_color='#d7d7d7',
                         showlegend=False
                          ))

fig.add_trace(go.Scatter(x = [dtmin, dtmax, dtmax, dtmin],
                         y = [prmax, prmax, ulim, ulim],
                         mode='lines',
                         fill='toself',
                         fillcolor='#d7d7d7',
                         line_color='#d7d7d7',
                         showlegend=False
                          ))
fig.add_trace(go.Scatter(x=df['date'], y=df['price'], line_color='black'))
fig.add_trace(go.Scatter(x=df['date'], y =[prmax]*len(df), mode='lines', line_color='red', line_width=2))
fig.add_trace(go.Scatter(x=df['date'], y =[prmin]*len(df), mode='lines', line_color='red', line_width=2))
fig.update_yaxes(range= [llim, ulim])
fig
