Hi, I’m back! Here’s an example of a quoteboard heavily modified from the example posted by AnneMarieW here:
Here’s the code:
## TallTim's Quoteboard v0.04
## Styled quoteboard based on the application card example by AnneMarieW from here ("Card Group"):
## https://dash-building-blocks.com/app_cards
import dash
from dash import Dash, dcc, html, Input, Output
import dash_bootstrap_components as dbc
import requests
import dash_mantine_components as dmc
import pandas as pd
# If you want to work with the original example code you'll need to enable the 'SUPERHERO' stylesheet here...even though I'm not
# using the icons, I left it in as a convenience...
app = Dash(__name__, external_stylesheets=[dbc.themes.CYBORG, dbc.icons.BOOTSTRAP])
#################### This is a flag you can set for testing so you don't ping the site API ####################
#testFlag = "False" # Uses live data from API URL request
testFlag = "True" # Uses test data, no URL requests
###############################################################################################################
# Assorted Variables
# Define coins to make quoteblocks from, this is asset_id column in the df.Quotes dataframe
# This will change if you change data sources
coins = ["bitcoin", "ethereum", "binancecoin", "ripple", "usd-coin", "tether", "bnb", "usdc", "staked-ether", "dogecoin", "solana", "cardano", "tron", "matic-network"]
interval = 6000 # update frequency - 1000 = 1 second, so 6 seconds here
# Access API
api_url = "https://api.coingecko.com/api/v3/coins/markets?vs_currency=usd"
# Colors For Card Backgrounds/Borders/Text
text_decline='#C70000'# Red
text_rally='#00C700' # Green
text_unchanged='#A8A8A8' # Off-white
gradient_decline = 'linear-gradient(0deg,#870900,#000000 95%)'
gradient_border_decline = '#940000'
gradient_rally = 'linear-gradient(0deg,#008709,#000000 95%)'
gradient_border_rally = '#009400'
gradient_unchanged = 'linear-gradient(0deg,#A8A8A8,#000000 95%)'
gradient_border_unchanged = '#949494'
change = 0
price = 0
icon = ""
color = ""
interval = dcc.Interval(interval=interval)
cards = html.Div()
df_Quotes = pd.DataFrame() # Init empty dataframe
# Used in assigning cards to quoteblock vars -- must match length of 'coins' list above...
quoteBlockVarNames = ['quoteBlock_1', 'quoteBlock_2', 'quoteBlock_3', 'quoteBlock_4', 'quoteBlock_5', 'quoteBlock_6', 'quoteBlock_7', 'quoteBlock_8', 'quoteBlock_9', 'quoteBlock_10', 'quoteBlock_11', 'quoteBlock_12']
# Debug -- snapshot of data served by CoinGecko so I can test style/layout without pinging the site...
# Testing volume sorting - edited volume so the sorted order should be:
# Bitcoin - 1000, Ethereum - 900, Ripple - 800, USD-Coin - 700, Doge - 650, Tether - 600, BinanceCoin - 500, Staked-Ether - 400, Solana - 300, Matic - 200, Tron - 10, Cardano - 5
scraped_data=[{'id': 'bitcoin', 'symbol': 'btc', 'name': 'Bitcoin', 'image': 'https://assets.coingecko.com/coins/images/1/large/bitcoin.png?1547033579', 'current_price': 29346, 'market_cap': 571125444188, 'market_cap_rank': 1, 'fully_diluted_valuation': 616394102148, 'total_volume': 1000, 'high_24h': 29653, 'low_24h': 29263, 'price_change_24h': -51.54874027145706, 'price_change_percentage_24h': 5.25, 'market_cap_change_24h': -896753676.9368896, 'market_cap_change_percentage_24h': -0.15677, 'circulating_supply': 19457737.0, 'total_supply': 21000000.0, 'max_supply': 21000000.0, 'ath': 69045, 'ath_change_percentage': -57.50061, 'ath_date': '2021-11-10T14:24:11.849Z', 'atl': 67.81, 'atl_change_percentage': 43173.91396, 'atl_date': '2013-07-06T00:00:00.000Z', 'roi': None, 'last_updated': '2023-08-15T05:38:38.522Z'}, {'id': 'ethereum', 'symbol': 'eth', 'name': 'Ethereum', 'image': 'https://assets.coingecko.com/coins/images/279/large/ethereum.png?1595348880', 'current_price': 1840.48, 'market_cap': 221180610887, 'market_cap_rank': 2, 'fully_diluted_valuation': 221180610887, 'total_volume': 900, 'high_24h': 1854.61, 'low_24h': 1836.08, 'price_change_24h': -5.970458272938913, 'price_change_percentage_24h': -0.32335, 'market_cap_change_24h': -599404386.0502014, 'market_cap_change_percentage_24h': -0.27027, 'circulating_supply': 120142222.589507, 'total_supply': 120142222.589507, 'max_supply': None, 'ath': 4878.26, 'ath_change_percentage': -62.27958, 'ath_date': '2021-11-10T14:24:19.604Z', 'atl': 0.432979, 'atl_change_percentage': 424886.14404, 'atl_date': '2015-10-20T00:00:00.000Z', 'roi': {'times': 82.83960831086297, 'currency': 'btc', 'percentage': 8283.960831086297}, 'last_updated': '2023-08-15T05:38:39.869Z'}, {'id': 'tether', 'symbol': 'usdt', 'name': 'Tether', 'image': 'https://assets.coingecko.com/coins/images/325/large/Tether.png?1668148663', 'current_price': 0.998601, 'market_cap': 83275370679, 'market_cap_rank': 3, 'fully_diluted_valuation': 83275370679, 'total_volume': 600, 'high_24h': 1.001, 'low_24h': 0.995176, 'price_change_24h': 0, 'price_change_percentage_24h': 0, 'market_cap_change_24h': -21912507.411972046, 'market_cap_change_percentage_24h': -0.02631, 'circulating_supply': 83410866925.5156, 'total_supply': 83410866925.5156, 'max_supply': None, 'ath': 1.32, 'ath_change_percentage': -24.52252, 'ath_date': '2018-07-24T00:00:00.000Z', 'atl': 0.572521, 'atl_change_percentage': 74.42837, 'atl_date': '2015-03-02T00:00:00.000Z', 'roi': None, 'last_updated': '2023-08-15T05:35:00.921Z'}, {'id': 'binancecoin', 'symbol': 'bnb', 'name': 'BNB', 'image': 'https://assets.coingecko.com/coins/images/825/large/bnb-icon2_2x.png?1644979850', 'current_price': 239.27, 'market_cap': 36813979487, 'market_cap_rank': 4, 'fully_diluted_valuation': 47855063951, 'total_volume': 500, 'high_24h': 241.0, 'low_24h': 239.13, 'price_change_24h': -1.3132428836969154, 'price_change_percentage_24h': -0.54587, 'market_cap_change_24h': -216913346.59331512, 'market_cap_change_percentage_24h': -0.58576, 'circulating_supply': 153856150.0, 'total_supply': 153856150.0, 'max_supply': 200000000.0, 'ath': 686.31, 'ath_change_percentage': -65.13848, 'ath_date': '2021-05-10T07:24:17.097Z', 'atl': 0.0398177, 'atl_change_percentage': 600780.88219, 'atl_date': '2017-10-19T00:00:00.000Z', 'roi': None, 'last_updated': '2023-08-15T05:38:39.120Z'}, {'id': 'ripple', 'symbol': 'xrp', 'name': 'XRP', 'image': 'https://assets.coingecko.com/coins/images/44/large/xrp-symbol-white-128.png?1605778731', 'current_price': 0.628703, 'market_cap': 33176786260, 'market_cap_rank': 5, 'fully_diluted_valuation': 62849958286, 'total_volume': 800, 'high_24h': 0.635508, 'low_24h': 0.625689, 'price_change_24h': -0.003263613505237073, 'price_change_percentage_24h': -0.51642, 'market_cap_change_24h': -213536726.86206436, 'market_cap_change_percentage_24h': -0.63952, 'circulating_supply': 52787284454.0, 'total_supply': 99988519823.0, 'max_supply': 100000000000.0, 'ath': 3.4, 'ath_change_percentage': -81.52247, 'ath_date': '2018-01-07T00:00:00.000Z', 'atl': 0.00268621, 'atl_change_percentage': 23276.81696, 'atl_date': '2014-05-22T00:00:00.000Z', 'roi': None, 'last_updated': '2023-08-15T05:38:40.312Z'}, {'id': 'usd-coin', 'symbol': 'usdc', 'name': 'USD Coin', 'image': 'https://assets.coingecko.com/coins/images/6319/large/USD_Coin_icon.png?1547042389', 'current_price': 1.0, 'market_cap': 26002210526, 'market_cap_rank': 6, 'fully_diluted_valuation': 25995337308, 'total_volume': 700, 'high_24h': 1.001, 'low_24h': 0.995914, 'price_change_24h': 0.00024895, 'price_change_percentage_24h': 0.0249, 'market_cap_change_24h': -164825818.58258438, 'market_cap_change_percentage_24h': -0.6299, 'circulating_supply': 26002476366.8477, 'total_supply': 25995603078.5546, 'max_supply': None, 'ath': 1.17, 'ath_change_percentage': -14.76763, 'ath_date': '2019-05-08T00:40:28.300Z', 'atl': 0.877647, 'atl_change_percentage': 13.88698, 'atl_date': '2023-03-11T08:02:13.981Z', 'roi': None, 'last_updated': '2023-08-15T05:38:41.408Z'}, {'id': 'staked-ether', 'symbol': 'steth', 'name': 'Lido Staked Ether', 'image': 'https://assets.coingecko.com/coins/images/13442/large/steth_logo.png?1608607546', 'current_price': 1840.15, 'market_cap': 14926181150, 'market_cap_rank': 7, 'fully_diluted_valuation': 14922486712, 'total_volume': 400, 'high_24h': 1853.33, 'low_24h': 1837.27, 'price_change_24h': -5.9586862118578665, 'price_change_percentage_24h': -0.32277, 'market_cap_change_24h': -23891417.27374077, 'market_cap_change_percentage_24h': -0.15981, 'circulating_supply': 8109614.0695121, 'total_supply': 8109614.0695121, 'max_supply': 8107606.82716179, 'ath': 4829.57, 'ath_change_percentage': -61.9037, 'ath_date': '2021-11-10T14:40:47.256Z', 'atl': 482.9, 'atl_change_percentage': 281.01098, 'atl_date': '2020-12-22T04:08:21.854Z', 'roi': None, 'last_updated': '2023-08-15T05:38:41.375Z'}, {'id': 'dogecoin', 'symbol': 'doge', 'name': 'Dogecoin', 'image': 'https://assets.coingecko.com/coins/images/5/large/dogecoin.png?1547792256', 'current_price': 0.07442, 'market_cap': 10463841439, 'market_cap_rank': 8, 'fully_diluted_valuation': 10463755851, 'total_volume': 650, 'high_24h': 0.075371, 'low_24h': 0.073692, 'price_change_24h': -0.000596043719873193, 'price_change_percentage_24h': -0.79455, 'market_cap_change_24h': -93366893.82887459, 'market_cap_change_percentage_24h': -0.88439, 'circulating_supply': 140595866383.705, 'total_supply': 140594716383.705, 'max_supply': None, 'ath': 0.731578, 'ath_change_percentage': -89.83321, 'ath_date': '2021-05-08T05:08:23.458Z', 'atl': 8.69e-05, 'atl_change_percentage': 85486.66332, 'atl_date': '2015-05-06T00:00:00.000Z', 'roi': None, 'last_updated': '2023-08-15T05:38:46.559Z'}, {'id': 'solana', 'symbol': 'sol', 'name': 'Solana', 'image': 'https://assets.coingecko.com/coins/images/4128/large/solana.png?1640133422', 'current_price': 24.96, 'market_cap': 10142116320, 'market_cap_rank': 9, 'fully_diluted_valuation': 13859120315, 'total_volume': 300, 'high_24h': 25.24, 'low_24h': 24.36, 'price_change_24h': 0.530718, 'price_change_percentage_24h': 2.17233, 'market_cap_change_24h': 211395396, 'market_cap_change_percentage_24h': 2.1287, 'circulating_supply': 406100728.206927, 'total_supply': 554933376.28717, 'max_supply': None, 'ath': 259.96, 'ath_change_percentage': -90.4005, 'ath_date': '2021-11-06T21:54:35.825Z', 'atl': 0.500801, 'atl_change_percentage': 4882.97123, 'atl_date': '2020-05-11T19:35:23.449Z', 'roi': None, 'last_updated': '2023-08-15T05:38:39.674Z'}, {'id': 'cardano', 'symbol': 'ada', 'name': 'Cardano', 'image': 'https://assets.coingecko.com/coins/images/975/large/cardano.png?1547034860', 'current_price': 0.289028, 'market_cap': 10129225134, 'market_cap_rank': 10, 'fully_diluted_valuation': 13006558999, 'total_volume': 5, 'high_24h': 0.292078, 'low_24h': 0.287716, 'price_change_24h': -0.001666535922617174, 'price_change_percentage_24h': -0.57329, 'market_cap_change_24h': -58743586.493177414, 'market_cap_change_percentage_24h': -0.5766, 'circulating_supply': 35045020830.3234, 'total_supply': 45000000000.0, 'max_supply': 45000000000.0, 'ath': 3.09, 'ath_change_percentage': -90.64588, 'ath_date': '2021-09-02T06:00:10.474Z', 'atl': 0.01925275, 'atl_change_percentage': 1399.80376, 'atl_date': '2020-03-13T02:22:55.044Z', 'roi': None, 'last_updated': '2023-08-15T05:38:46.726Z'}, {'id': 'tron', 'symbol': 'trx', 'name': 'TRON', 'image': 'https://assets.coingecko.com/coins/images/1094/large/tron-logo.png?1547035066', 'current_price': 0.077272, 'market_cap': 6915242709, 'market_cap_rank': 11, 'fully_diluted_valuation': 6915291935, 'total_volume': 10, 'high_24h': 0.077575, 'low_24h': 0.077072, 'price_change_24h': 0.00011325, 'price_change_percentage_24h': 0.14678, 'market_cap_change_24h': 4577588, 'market_cap_change_percentage_24h': 0.06624, 'circulating_supply': 89471632948.6968, 'total_supply': 89472269852.3265, 'max_supply': None, 'ath': 0.231673, 'ath_change_percentage': -66.63921, 'ath_date': '2018-01-05T00:00:00.000Z', 'atl': 0.00180434, 'atl_change_percentage': 4183.43794, 'atl_date': '2017-11-12T00:00:00.000Z', 'roi': {'times': 39.66971290740434, 'currency': 'usd', 'percentage': 3966.9712907404337}, 'last_updated': '2023-08-15T05:38:39.511Z'}, {'id': 'matic-network', 'symbol': 'matic', 'name': 'Polygon', 'image': 'https://assets.coingecko.com/coins/images/4713/large/matic-token-icon.png?1624446912', 'current_price': 0.674663, 'market_cap': 6290066896, 'market_cap_rank': 12, 'fully_diluted_valuation': 6749383306, 'total_volume': 200, 'high_24h': 0.684453, 'low_24h': 0.674531, 'price_change_24h': -0.006132114034599567, 'price_change_percentage_24h': -0.90073, 'market_cap_change_24h': -48608944.01885128, 'market_cap_change_percentage_24h': -0.76686, 'circulating_supply': 9319469069.28493, 'total_supply': 10000000000.0, 'max_supply': 10000000000.0, 'ath': 2.92, 'ath_change_percentage': -76.86017, 'ath_date': '2021-12-27T02:08:34.307Z', 'atl': 0.00314376, 'atl_change_percentage': 21365.32317, 'atl_date': '2019-05-10T00:00:00.000Z', 'roi': {'times': 255.5260048380359, 'currency': 'usd', 'percentage': 25552.600483803588}, 'last_updated': '2023-08-15T05:38:39.642Z'}]
def get_data(): # Get data via API, pass exceptions to console if any generated
try:
response = requests.get(api_url, timeout=1)
return response.json()
except requests.exceptions.RequestException as e:
print(e)
return
def styleCard(myCoin, myPrice, myChange, myColor, myGradient, myGradientBorder):
card_html = dbc.Card(
html.Div(
[
html.H4( # Our asset name font size/style
[
myCoin # full_name of asset
],
style={'font-size':'160%', 'color':'white', 'text-align':'left', 'padding-left':'20px', 'padding-top':'20px'}
),
html.H4( # Price and Net Change format/style/padding
[ # Either change the number of decimals by changing the round(number,places) statement or the quoteblock width down at the end
html.Span(f"${round(myPrice,5):,}", style={'font-size':'90%', 'color' : 'white', 'text-align' : 'left', 'padding-left' : '20px'}),
html.Span(f"{round(myChange,2):+}%", style={'font-size':'90%','color': myColor, 'text-align' : 'left', 'padding-left' : '10px', 'padding-top' : '5px'})
]
)
],
# Background gradient/colorstops of quoteblock/padding - transparent background color
style={
'background':'#00000000','background-image': myGradient,'border':'1px','solid': '#00000000','border-radius':'5px', 'border-style':'solid', 'color':myGradientBorder, 'padding-bottom' : '10px'
}
),
# Quoteblock set width/height/padding/background - Also can be used to fit more decimals...
# Note that color here for the background is transparent so it doesn't clash with the overall theme background
style={'width':'270px', 'height':'130px', 'padding-right':'10px','background':'#00000000'}
)
return card_html
app.layout = dbc.Container([interval, cards], className="my-5", style={'background':'#00000000'}) # Same here, transparent background
def make_card(myName, myChange, myPrice): # passes full_name, net_change_percent, price
if myChange < 0: # Decreased price?
color = text_decline # Color of net change % +/-
gradient_fill = gradient_decline
gradient_border = gradient_border_decline
elif myChange > 0: # Increased price?
color = text_rally
gradient_fill = gradient_rally
gradient_border = gradient_border_rally
else: # Rare, but no change in price?
color = text_unchanged
gradient_fill = gradient_unchanged
gradient_border = gradient_border_unchanged
return styleCard(myName, myPrice, myChange, color, gradient_fill, gradient_border)
# Columns we don't need from data -- feel free to change if you want to use these
dropList = ['image','market_cap','market_cap_rank','fully_diluted_valuation','high_24h','low_24h','price_change_24h','market_cap_change_24h','market_cap_change_percentage_24h','circulating_supply','total_supply','max_supply','ath','ath_change_percentage','ath_date','atl','atl_change_percentage','atl_date','roi','last_updated']
# Renamed columns - original:new name -- You can change these, but you need to alter their references in the rest of the code...
renamedPairsList = {'id':'asset_id','symbol':'ticker','name':'full_name','current_price':'price','total_volume':'volume','price_change_percentage_24h':'net_change_percent'}
@app.callback(Output(cards, "children"), Input(interval, "n_intervals"))
def update_cards(_):
if testFlag == "True":
coin_data = scraped_data # For debug so I don't poll the site a bazillion times
if testFlag == "False":
coin_data = get_data() # Live data
if coin_data is None or type(coin_data) is dict: # Catch none type exception
return dash.no_update
## Process scraped data into pandas dataframe
df_Quotes = pd.DataFrame.from_dict(coin_data, orient="columns")
# Drop columns we don't need - helps when debugging
df_Quotes = df_Quotes.drop(columns=dropList, axis=1)
# Rename columns for ease of reference/debugging
df_Quotes = df_Quotes.rename(columns=renamedPairsList)
# Sort based on volume, descending order
df_Quotes = df_Quotes.sort_values(by="volume", ascending=False)
# Reindex dataframe for ease of reference
df_Quotes = df_Quotes.reset_index(drop=True)
# Debug
# Print data types if needed
#print(df_Quotes.info())
# Print dataframe contents
#print("Dataframe Contents: \n" + df_Quotes.to_string() + "\n")
# Our list of cards with data fully styled
coin_cards = []
# Assign dataframe columns to variables
coin_name = df_Quotes["full_name"]
net_change = df_Quotes["net_change_percent"]
price = df_Quotes["price"]
# Using dataframes, iterate via index
for idx, item in enumerate(coin_name):
coin_cards.append(make_card(coin_name[idx], net_change[idx], price[idx])) # pass asset_id, net change, price
# Don't like the padding on this one, not sure how to adjust - tried a lot of variants...(not shown, but trust me, I did)
# Just leaving it here for demonstration sake...
# make the card layout -- this works -- but the grid is spaced out more than I'd like...
#card_layout = [
# dmc.Grid([
# dbc.Row([
# dmc.Col(card, md=1) for card in coin_cards
# ])
# ])
#]
# I prefer this layout, even though its a bit simplistic...
# Assign variables values in loop
for idx, var in enumerate(quoteBlockVarNames): # If you want more cards, just add to the list in the variable section up top
globals()[var] = coin_cards[idx] # Assign our quoteblock variable names the proper coin_card[] using proper index
# Simple nested structure with main Div and a Grid inside...
card_layout = [
html.Div([
html.H1(["Top Crypto Assets - By Volume"], style={'padding-left':'20px', 'font-size':'30px', 'font-weight':'bold'}),
html.Br(),
# Probably could use a loop to assign this as well, but honestly I'm tired and this is all the cards I want...
dmc.Grid([
quoteBlock_1, quoteBlock_2, quoteBlock_3, quoteBlock_4, quoteBlock_5, quoteBlock_6, quoteBlock_7, quoteBlock_8, quoteBlock_9, quoteBlock_10, quoteBlock_11, quoteBlock_12
], align="center", justify="center")
])
]
return card_layout
# Run the App
if __name__ == '__main__':
app.run_server(debug=True, host='0.0.0.0',port=8100) # Set host argument to allow LAN connections, Port for custom ports

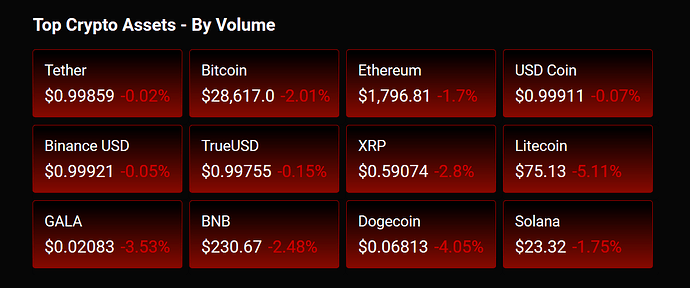

Here’s a pic of the quoteboard using the test data:
Here’s a pic of the quoteboard using live data:
Enjoy!
