The following is a more complex iteration of a question I’ve asked previously.
In that question, I just had 2 graphs and wanted to display different parameters for user-specification based on the dropdown selection.

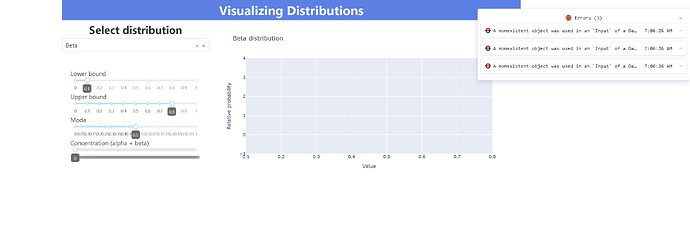

When I apply the same logic for 3 graphs (in the display_sliders_or_inputs function), the display for the parameters becomes static.
from dash import Dash, html, dcc, Input, Output, State
import dash_bootstrap_components as dbc
import numpy as np
import plotly.graph_objects as go
import plotly.express as px
from scipy import stats, special
class bounded_beta(stats.rv_continuous):
def _pdf(self, x, alpha, beta):
mask = np.greater(x,self.a) & np.less(x,self.b)
y = np.zeros_like(x)
# this is the formula for pdf of beta distribution
# note the confusion about the beta function
# it's different from the beta parameter
y[mask] = x[mask]**(alpha[mask]-1) * (1-x[mask])**(beta[mask]-1) / special.beta(alpha[mask], beta[mask])
return y
input_beta = html.Div(
[
html.Div('Lower bound'),
dcc.Slider(
id="lb",
min=0,
max=1,
value=0.1,
step = 0.1,
className="four columns",
tooltip={"placement": "bottom", "always_visible": True},
),
html.Div('Upper bound'),
dcc.Slider(
id="ub",
min=0,
max=1,
value=0.8,
step = 0.1,
className="four columns",
tooltip={"placement": "bottom", "always_visible": True},
),
html.Div('Mode'),
dcc.Slider(
id="mode",
min=0,
max=1,
value=0.5,
step = 0.05,
className="four columns",
tooltip={"placement": "bottom", "always_visible": True},
),
html.Div('Concentration (alpha + beta)'),
dcc.Slider(
id="conc",
min=0,
max=400,
step=1,
value=0,
className="four columns",
tooltip={"placement": "bottom", "always_visible": True},
)
],
className="row",
id="input_beta",
)
input_skew = html.Div(
[
dbc.InputGroup(
[
dbc.InputGroupText("Alpha (skew)"),
dbc.Input(
id="alpha_skew",
placeholder = 0,
type="number",
value=0
),
],
className="mb-3",
),
dbc.InputGroup(
[
dbc.InputGroupText("Mean"),
dbc.Input(
id="mean_skew",
placeholder = 0,
type="number",
value=0
),
],
className="mb-3",
),
dbc.InputGroup(
[
dbc.InputGroupText("Standard deviation"),
dbc.Input(
id="std_skew",
placeholder = 1,
type="number",
value=1
),
],
className="mb-3",
)
],
className="row",
id="input_skew",
)
input_mv = html.Div(
[
dbc.InputGroup(
[
dbc.InputGroupText("1st variable mean"),
dbc.Input(
id="var1_mu",
placeholder="10",
type="number",
min=10,
value=58.8,
),
],
className="mb-3",
),
dbc.InputGroup(
[
dbc.InputGroupText("1st variable standard deviation"),
dbc.Input(
id="var1_sd",
placeholder="3",
type="number",
min=0.01,
value=7.82,
),
],
className="mb-3",
),
dbc.InputGroup(
[
dbc.InputGroupText("2nd variable mean"),
dbc.Input(
id="var2_mu",
placeholder="7",
type="number",
min=10,
value=60.7,
),
],
className="mb-3",
),
dbc.InputGroup(
[
dbc.InputGroupText("2nd variable standard deviation"),
dbc.Input(
id="var2_sd",
placeholder="10",
type="number",
min=0.01,
value=7.6,
),
],
className="mb-3",
),
dbc.InputGroup(
[
dbc.InputGroupText("Variable correlation"),
dbc.Input(
id="corr",
placeholder="0.12",
type="number",
min=-1,
value=0.7,
),
],
className="mb-3",
),
],
className="row",
id="input_mv",
)
# App Layout *******************************************
app = Dash(__name__, external_stylesheets=[dbc.themes.LITERA])
app.config.suppress_callback_exceptions = True
app.layout = dbc.Container(
[
dbc.Row(
dbc.Col(
html.H2(
"Visualizing Distributions",
className="text-center bg-primary text-white p-2",
),
)
),
dbc.Row(
[
dbc.Col(
[
html.H3(
"Select distribution",
style={"textAlign": "center"},
),
dcc.Dropdown(
id="select-distribution",
options=[
{"label": "Beta", "value": "beta"},
{
"label": "Multivariate normal",
"value": "multivariate_normal",
},
{"label": "Skew normal", "value": "skew_norm"}
],
value="beta",
),
html.Div(
[input_beta, input_mv, input_skew],
id="sliders-or-inputs",
className="mt-4 p-4",
),
],
width=4,
),
dbc.Col(
[
html.Div([], id="beta_graph"),
html.Div([], id="mv_graph"),
html.Div([], id="skew_graph")
],
width=8,
),
]
),
]
)
# Callbacks *******************************************
@app.callback(
Output("input_beta", "style"),
Output("input_mv", "style"),
Output("input_skew", "style"),
Input("select-distribution", "value"),
)
def display_sliders_or_inputs(distribution):
if distribution == "beta":
return {}, {"display": "none"}, {"display": "none"}
elif distribution == "multivariate_normal":
return {"display": "none"}, {}, {"display", "none"}
elif distribution =="skew_normal":
return {"display": "none"}, {"display": "none"}, {}
@app.callback(
Output("mv_graph", "children"),
Input("select-distribution", "value"),
Input("var1_mu", "value"),
Input("var1_sd", "value"),
Input("var2_mu", "value"),
Input("var2_sd", "value"),
Input("corr", "value"),
)

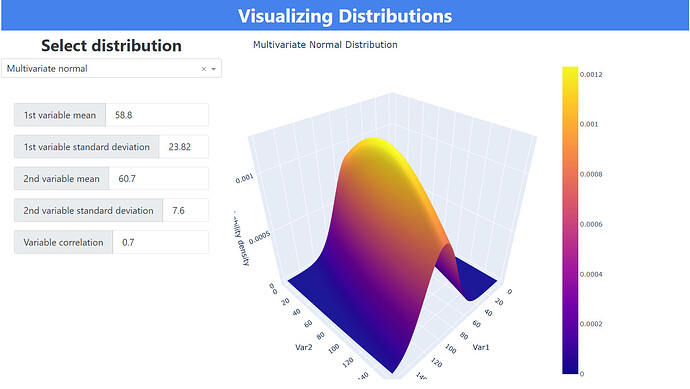

def update_mv_normal_distr(distribution, var1_mu, var1_sd, var2_mu, var2_sd, corr):
if distribution == "multivariate_normal":
x1, x2 = np.mgrid[40:80:0.25, 40:80:0.25]
means = np.array([var1_mu, var2_mu])
cov = var1_sd * var2_sd * corr
cov_mat = np.array([[var1_sd**2, cov], [cov, var2_sd**2]])
z = stats.multivariate_normal(means, cov_mat).pdf(np.dstack((x1, x2)))
fig = go.Figure(data=[go.Surface(z=z)])
fig.update_xaxes(title_text="Testing distribution display")
fig.update_yaxes(title_text="Probability Density")
fig.update_layout(
width=700,
height=700,
title="Multivariate Normal Distribution",
scene=dict(
xaxis=dict(title="Var1"),
yaxis=dict(title="Var2"),
zaxis=dict(title="Probability density"),
),
margin=dict(l=0, r=50, b=50, t=50),
)
return dcc.Graph(figure=fig)
else:
return None
@app.callback(
Output("beta_graph", "children"),
Input("select-distribution", "value"),
Input("lb", "value"),
Input("ub", "value"),
Input("mode", "value"),
Input("conc", "value"),
)
def update_beta_distr(distribution, lb, ub, m, conc):
if distribution == "beta":
bounded_beta_distribution = bounded_beta(a=lb, b=ub, name='bounded_beta',
shapes='alpha, beta')
alpha_ = m * (conc - 2) + 1
beta_ = (1-m) * (conc - 2) + 1
x = np.linspace(lb, ub, 10000)
y = bounded_beta_distribution.pdf(x, alpha_, beta_)
fig = px.line(x=x, y=y, title="Beta distribution")
fig.update_layout(xaxis_title="Value", yaxis_title="Relative probability")
return dcc.Graph(figure=fig)
else:
return None
@app.callback(
Output("skew_graph", "children"),
Input("select-distribution", "value"),
Input("alpha_skew", "value"),
Input("mean_skew", "value"),
Input("std_skew", "value")
)
def update_skewnorm_distr(distribution, a, mu, std_):
if distribution=="skew_norm":
x = np.linspace(-5, 5, 10000)
y = stats.skewnorm.pdf(x, a, mu, std_)
fig = px.line(x = x, y = y, title = "Skew Normal Distribution")
fig.update_layout(xaxis_title="Value", yaxis_title="Relative Probability")
return dcc.Graph(figure=fig)
else:
return None
if __name__ == "__main__":
app.run_server(debug=True)
