Dash legend positioning issue (with range-slider)

[maddran]

Hi all,

I’m trying to produce a simple line plot with an x-axis rangeslider element with a legend outside the right side of the plot. This is the plot area without a legend:

However, when I go to add a legend the whole plot seems to shrink for no discernible reason, and the x anchor positioning does not have any effect (y anchor positioning works). For example, with the following layout:

        fig = go.Figure(data=areas)
        fig.update_xaxes(rangeslider_visible=True)
        fig.update_layout(
            template='simple_white',
            width=700,
            xaxis = dict(
                type='date',
                range=[lower_date, upper_date]),
            yaxis=dict(
                type='linear',
                ticksuffix=''),
            legend=dict(
                yanchor="top",
                y=1,
                xanchor="left",
                x=1.5),
            showlegend = True,
            margin=dict(pad=5, b=0))

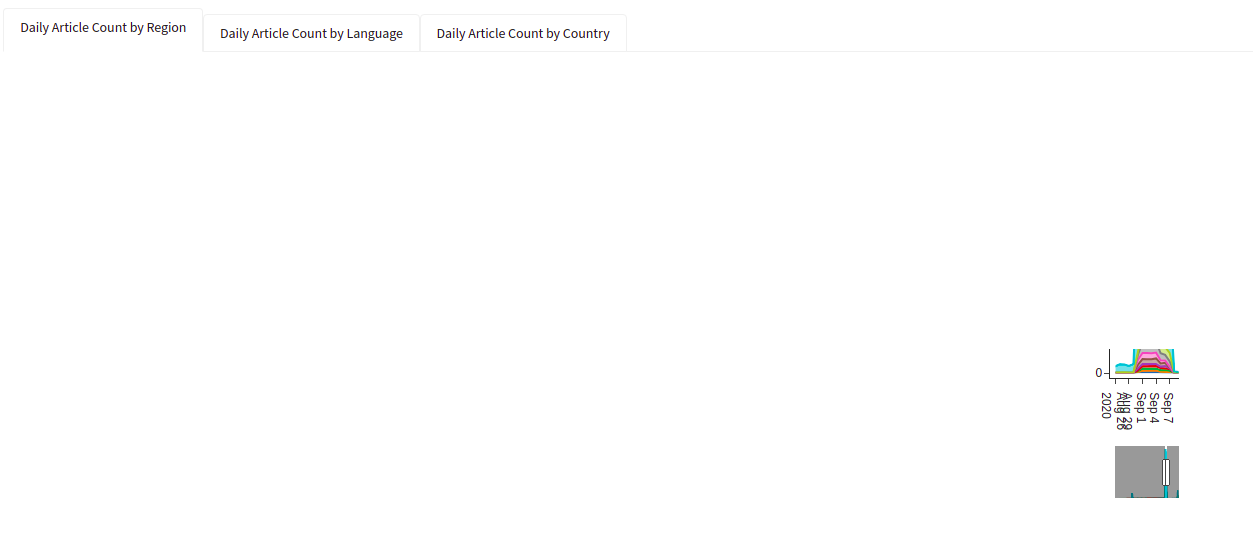

I get the following:

When i try to place the legend to the left of the plot with the following:

legend=dict(
                yanchor="top",
                y=1,
                xanchor="right",
                x=-0.1)

I get:

I’ve tried different variations of anchors and legend position, however, none are producing a single column, scrollable legend that I expect to see.

Am I fundamentally misunderstanding how the legend anchors are defined?

Thanks!
