Dash Dropdown element not aligning with other (e.g. Input) elements

Dash Python
1

I cannot seem to get a dropdown element inline with other (e.g. input) elements. I want to create a row of 2 Input elements and 1 Dropdown element. However, the Dropdown element keeps changing position.

As an example I included two input elements in the dash Dropdown sample code.

import dash
import dash_html_components as html
import dash_core_components as dcc

external_stylesheets = ["https://codepen.io/chriddyp/pen/bWLwgP.css"]

app = dash.Dash(__name__, external_stylesheets=external_stylesheets)
app.layout = html.Div(
    [
        html.Div(
            [
                html.P("Input field 1"),
                dcc.Input(id="input-box-1", type="number", value=100),
            ],
            style=dict(display="inline-block")
        ),
        html.Div(
            [
                html.P("Input field 2"),
                dcc.Input(id="input-box-2", type="number", value=100),
            ],
            style=dict(display="inline-block")
        ),
        html.Div(
            [
                html.P("Dropdown menu"),
                dcc.Dropdown(
                    id="demo-dropdown",
                    options=[
                        {"label": "New York City", "value": "NYC"},
                        {"label": "Montreal", "value": "MTL"},
                        {"label": "San Francisco", "value": "SF"},
                    ],
                    value="NYC",
                ),
            ],
            style=dict(display="inline-block")
        ),
        html.Div(id="dd-output-container"),
    ]
)


@app.callback(
    dash.dependencies.Output("dd-output-container", "children"),
    [dash.dependencies.Input("demo-dropdown", "value")],
)
def update_output(value):
    return 'You have selected "{}"'.format(value)


if __name__ == "__main__":
    app.run_server(debug=True)

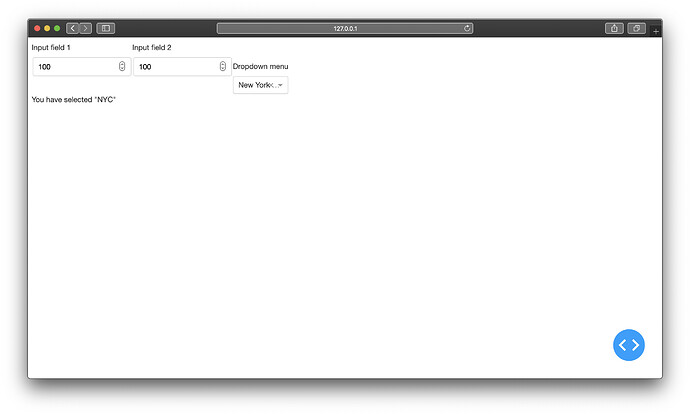

image2784Ă—1674 157 KB

2

Hi @pep1,

You are right, if I change the Dropdown for an Input it’s shown in the same line :thinking:

I don’t know why, but I added to the styles “float” : “left” and it works :smiley:

import dash
import dash_html_components as html
import dash_core_components as dcc

external_stylesheets = ["https://codepen.io/chriddyp/pen/bWLwgP.css"]

app = dash.Dash(__name__, external_stylesheets=external_stylesheets)
app.layout = html.Div(
    [
        html.Div(
            [
                html.P("Input field 1"),
                dcc.Input(id="input-box-1", type="number", value=100),
            ],
            style={'display': "inline-block", "float" : "left", 'width': '33%'}
        ),
        html.Div(
            [
                html.P("Input field 2"),
                dcc.Input(id="input-box-2", type="number", value=100),
            ],
            style={'display': "inline-block", "float" : "left", 'width': '33%'}
        ),
        html.Div(
            [
                html.P("Dropdown menu"),
                dcc.Dropdown(
                    id="demo-dropdown",
                    options=[
                        {"label": "New York City", "value": "NYC"},
                        {"label": "Montreal", "value": "MTL"},
                        {"label": "San Francisco", "value": "SF"},
                    ],
                    value="NYC",
                ),
            ],
            style={'display': "inline-block", "float" : "left", 'width': '33%', 'margin-bottom':4}
        ),
        html.Div(id="dd-output-container"),
    ]
)


@app.callback(
    dash.dependencies.Output("dd-output-container", "children"),
    [dash.dependencies.Input("demo-dropdown", "value")],
)
def update_output(value):
    return 'You have selected "{}"'.format(value)


if __name__ == "__main__":
    app.run_server(debug=True)
1 Like
