Might be weird but want to ask. When I use the following code in python notebook,
import plotly
import plotly.plotly as py
import plotly.graph_objs as go
plotly.offline.init_notebook_mode()
import numpy as np
y0 = np.random.randn(50)-1
y1 = np.random.randn(50)+1
trace0 = go.Box(y=y0)
trace1 = go.Box(y=y1)
traces1 = [trace0, trace1]
data = [trace0,trace1]
layout = go.Layout(title = 'test title')
fig = go.Figure(data=data,layout=layout)
plotly.offline.iplot(data, filename='test')

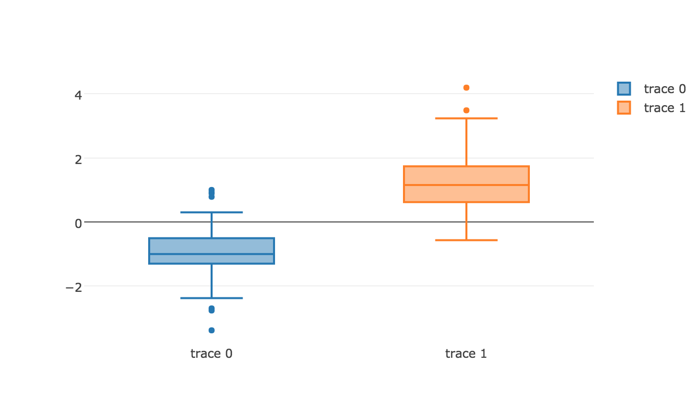

I get
When I use the following as Dash Flask,
import dash
import dash_core_components as dcc
import dash_html_components as html
from dash.dependencies import Input, Output
import flask
import numpy as np
import plotly.graph_objs as go
server = flask.Flask('app')
app = dash.Dash('app', server=server)
app.scripts.config.serve_locally = False
dcc._js_dist[0]['external_url'] = 'https://cdn.plot.ly/plotly-basic-latest.min.js'
app.layout = html.Div([
html.H1('Test'),
dcc.Input(
id='my-input',
placeholder='Enter a value...',
type='text',
value=''
),
dcc.Graph(id='my-graph')
], className="container")
@app.callback(Output('my-graph', 'figure'),
[Input('my-input', 'value')])
def update_graph(input_text):
y0 = np.random.randn(50)-1
y1 = np.random.randn(50)+1
trace0 = go.Box(y=y0)
trace1 = go.Box(y=y1)
data = [trace0, trace1]
return {
'data': data,
'layout': go.Layout(
title=input_text
)
}
if __name__ == '__main__':
app.run_server()
I get
Anything wrong with my Flask code? Why not getting Boxplot in web?
Thanks
1 Like
thanks for reporting! what version of dash_core_components are you on?
fgcb
3
I install a few days ago:
sudo pip3 install dash==0.36.0 # The core dash backend
sudo pip3 install dash-html-components==0.13.5 # HTML components
sudo pip3 install dash-core-components==0.43.0 # Supercharged components
sudo pip3 install dash-table==3.1.11 # Interactive DataTable component (new!)
sudo pip3 install dash-daq==0.1.0 # DAQ components (newly open-sourced!)
And here are details:
ls /python3.6/site-packages/*dash*
/python3.6/site-packages/dash:
/python3.6/site-packages/dash-0.36.0-py3.6.egg-info:
PKG-INFO dependency_links.txt installed-files.txt top_level.txt
SOURCES.txt entry_points.txt requires.txt
/python3.6/site-packages/dash_core_components:
/python3.6/site-packages/dash_core_components-0.43.0-py3.6.egg-info:
/python3.6/site-packages/dash_daq:
/python3.6/site-packages/dash_daq-0.1.0-py3.6.egg-info:
/python3.6/site-packages/dash_html_components:
/python3.6/site-packages/dash_html_components-0.13.5-py3.6.egg-info:
PKG-INFO dependency_links.txt requires.txt
SOURCES.txt installed-files.txt top_level.txt
/python3.6/site-packages/dash_renderer:
__init__.py dash_renderer.min.js react@15.4.2.min.js
__pycache__ dash_renderer.min.js.map react@16.2.0.production.min.js
dash_renderer.dev.js react-dom@15.4.2.min.js version.py
dash_renderer.dev.js.map react-dom@16.2.0.production.min.js
/python3.6/site-packages/dash_renderer-0.18.0-py3.6.egg-info:
PKG-INFO SOURCES.txt dependency_links.txt installed-files.txt top_level.txt
/python3.6/site-packages/dash_table:
DataTable.py __pycache__ bundle.js metadata.json
__init__.py _imports_.py bundle.js.map package-info.json
/python3.6/site-packages/dash_table-3.1.11-py3.6.egg-info:
PKG-INFO dependency_links.txt requires.txt
SOURCES.txt installed-files.txt top_level.txt
fgcb
4
I just tried newer version and has the same issue.
sudo pip3 install dash
sudo pip3 install dash-html-components
sudo pip3 install dash-core-components
sudo pip3 install dash-table
sudo pip3 install dash-daq
dash-0.37.0 dash-core-components-0.43.1 dash-html-components-0.13.5 dash-table-3.4.0 dash-daq-0.1.1
Hi,Any update on the issue, even am facing the same issue.
jacqui
6
Also struggling with this, would appreciate an update
fgcb
7
I did not get update for a while on this thread.
try removing this line? this is not an official api
