Hello Dash community, hope you’re fine
I’m facing problems when trying to display a data frame with hilighted value.
I found that I can use the Styling data frame in Python :
But doesn’t work when trying to apply it on Dash.
Can anyone give me a handle on this?
Thanks a lot.
Hi Samuel, thanks for your reactivity and your answer.
I have currently seen solutions of this kind, and I tell myself that to apply them I will lose the notion of gradient since I could only use the positive negative condition to display colors.
but apparently if I have no solution to apply the gradient, I will opt for this solution with two colors, one for the positive and another for the negative :).
Thanks a lot.
Hi @lahyouness
If you scroll down on the page @SamuelVT posted or click on the link he provide you will find the example Highlighting with a colorscal on a single column.
btw Welcome to the forum @SamuelVT and thanks for posting such a helpful link.
Here is the example modified to use the Spectral colorscale:
Here is more information on build-it color scales
from dash import Dash, dash_table, html
import pandas as pd
from collections import OrderedDict
import plotly.express as px
wide_data = [
{'Firm': 'Acme', '2017': 13, '2018': 5, '2019': 10, '2020': 4},
{'Firm': 'Olive', '2017': 3, '2018': 3, '2019': 13, '2020': 3},
{'Firm': 'Barnwood', '2017': 6, '2018': 7, '2019': 3, '2020': 6},
{'Firm': 'Henrietta', '2017': -3, '2018': -10, '2019': -5, '2020': -6},
]
df = pd.DataFrame(wide_data)
app = Dash(__name__)
def discrete_background_color_bins(df, n_bins=10, columns='all'):
import colorlover
bounds = [i * (1.0 / n_bins) for i in range(n_bins + 1)]
if columns == 'all':
if 'id' in df:
df_numeric_columns = df.select_dtypes('number').drop(['id'], axis=1)
else:
df_numeric_columns = df.select_dtypes('number')
else:
df_numeric_columns = df[columns]
df_max = df_numeric_columns.max().max()
df_min = df_numeric_columns.min().min()
ranges = [
((df_max - df_min) * i) + df_min
for i in bounds
]
styles = []
legend = []
for i in range(1, len(bounds)):
min_bound = ranges[i - 1]
max_bound = ranges[i]
# using color scales from colorlover
backgroundColor1 = colorlover.scales[str(n_bins)]['div']['Spectral'][i - 1]
# or using plotly express color scales
backgroundColor = px.colors.diverging.Spectral[i-1]
color = 'white' if i > len(bounds) / 2. else 'inherit'
for column in df_numeric_columns:
styles.append({
'if': {
'filter_query': (
'{{{column}}} >= {min_bound}' +
(' && {{{column}}} < {max_bound}' if (i < len(bounds) - 1) else '')
).format(column=column, min_bound=min_bound, max_bound=max_bound),
'column_id': column
},
'backgroundColor': backgroundColor,
'color': color
})
legend.append(
html.Div(style={'display': 'inline-block', 'width': '60px'}, children=[
html.Div(
style={
'backgroundColor': backgroundColor,
'borderLeft': '1px rgb(50, 50, 50) solid',
'height': '10px'
}
),
html.Small(round(min_bound, 2), style={'paddingLeft': '2px'})
])
)
return (styles, html.Div(legend, style={'padding': '5px 0 5px 0'}))
(styles, legend) = discrete_background_color_bins(df, columns=['2018'])
app.layout = html.Div([
legend,
dash_table.DataTable(
data=df.to_dict('records'),
sort_action='native',
columns=[{'name': i, 'id': i} for i in df.columns],
style_data_conditional=styles
)
])
if __name__ == '__main__':
app.run_server(debug=True)
Hi lahyouness

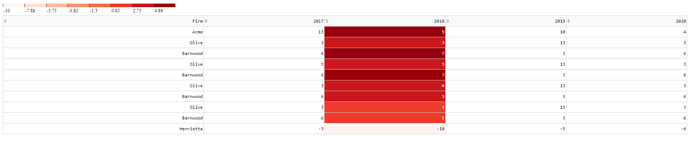

Here is a code with a little modification made by me , I hope can help you.
import dash
import dash_html_components as html
import dash_table
import pandas as pd
from collections import OrderedDict
wide_data = [
{'Firm': 'Acme', '2017': 13, '2018': 5, '2019': 10, '2020': 4},
{'Firm': 'Olive', '2017': 3, '2018': 3, '2019': 13, '2020': 3},
{'Firm': 'Barnwood', '2017': 6, '2018': 7, '2019': 3, '2020': 6},
{'Firm': 'Olive', '2017': 3, '2018': 3, '2019': 13, '2020': 3},
{'Firm': 'Barnwood', '2017': 6, '2018': 7, '2019': 3, '2020': 6},
{'Firm': 'Olive', '2017': 3, '2018': 4, '2019': 13, '2020': 3},
{'Firm': 'Barnwood', '2017': 6, '2018': 3, '2019': 3, '2020': 6},
{'Firm': 'Olive', '2017': 3, '2018': 2, '2019': 13, '2020': 3},
{'Firm': 'Barnwood', '2017': 6, '2018': 1, '2019': 3, '2020': 6},
{'Firm': 'Henrietta', '2017': -3, '2018': -10, '2019': -5, '2020': -6},
]
df = pd.DataFrame(wide_data)
app = dash.Dash(__name__)
def discrete_background_color_bins(df, n_bins=8, columns='all'):
import colorlover
bounds = [i * (1.0 / n_bins) for i in range(n_bins + 1)]
if columns == 'all':
if 'id' in df:
df_numeric_columns = df.select_dtypes('number').drop(['id'], axis=1)
else:
df_numeric_columns = df.select_dtypes('number')
else:
df_numeric_columns = df[columns]
df_max = df_numeric_columns.max().max()
df_min = df_numeric_columns.min().min()
ranges = [
((df_max - df_min) * i) + df_min
for i in bounds
]
styles = []
legend = []
for i in range(1, len(bounds)):
min_bound = ranges[i - 1]
max_bound = ranges[i]
backgroundColor = colorlover.scales[str(n_bins)]['seq']['Reds'][i - 1]
color = 'white' if i > len(bounds) / 2. else 'inherit'
for column in df_numeric_columns:
styles.append({
'if': {
'filter_query': (
'{{{column}}} >= {min_bound}' +
(' && {{{column}}} < {max_bound}' if (i < len(bounds) - 1) else '')
).format(column=column, min_bound=min_bound, max_bound=max_bound),
'column_id': column
},
'backgroundColor': backgroundColor,
'color': color
})
legend.append(
html.Div(style={'display': 'inline-block', 'width': '60px'}, children=[
html.Div(
style={
'backgroundColor': backgroundColor,
'borderLeft': '1px rgb(50, 50, 50) solid',
'height': '10px'
}
),
html.Small(round(min_bound, 2), style={'paddingLeft': '2px'})
])
)
return (styles, html.Div(legend, style={'padding': '5px 0 5px 0'}))
(styles, legend) = discrete_background_color_bins(df, columns=['2018'])
app.layout = html.Div([
legend,
dash_table.DataTable(
data=df.to_dict('records'),
sort_action='native',
columns=[{'name': i, 'id': i} for i in df.columns],
style_data_conditional=styles
)
])
if __name__ == '__main__':
app.run_server(debug=True)
Oh thanks for both of you ( Samuel and AnnMarie ) I appreciate your help. I can say that my problem was finally solved
.
